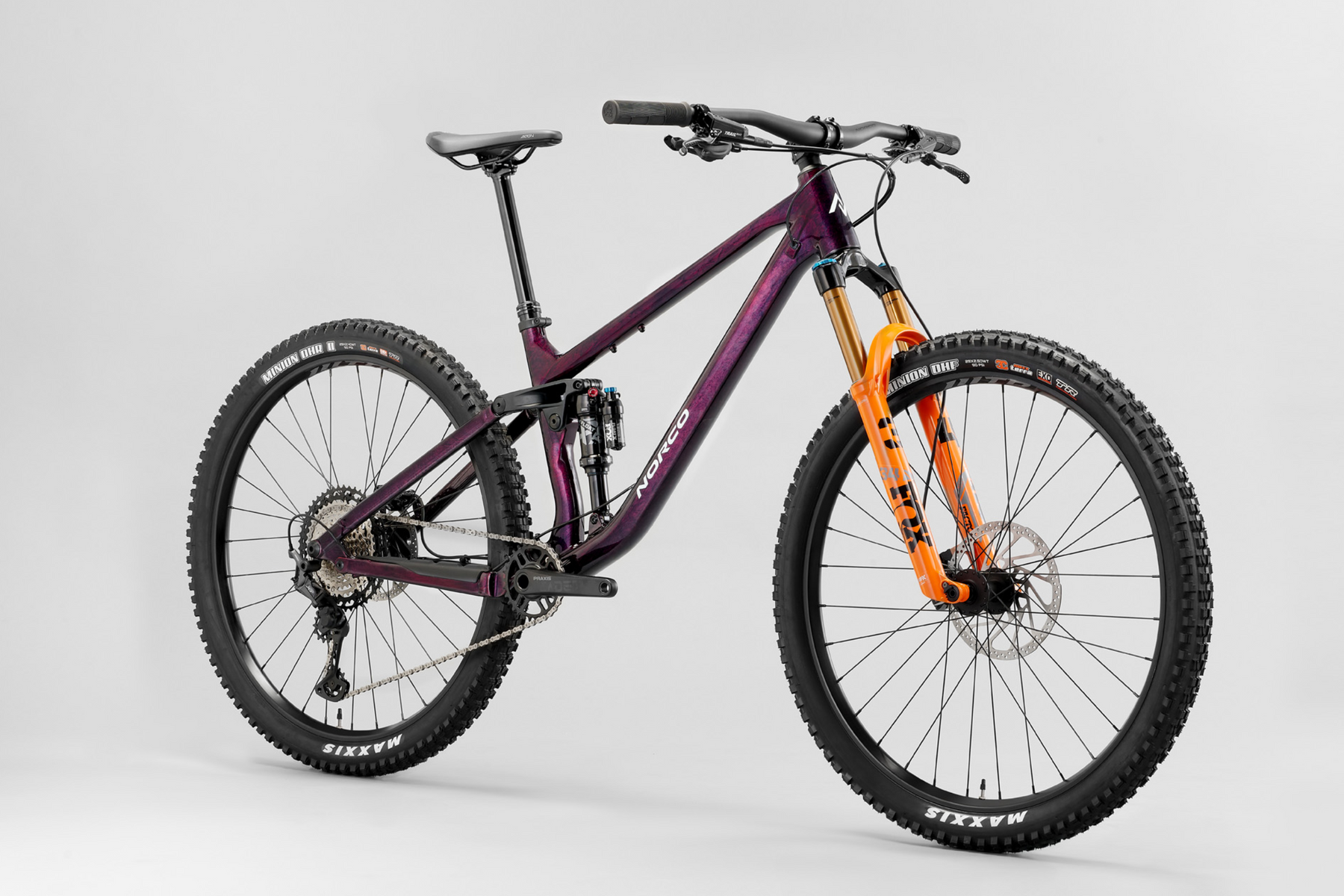

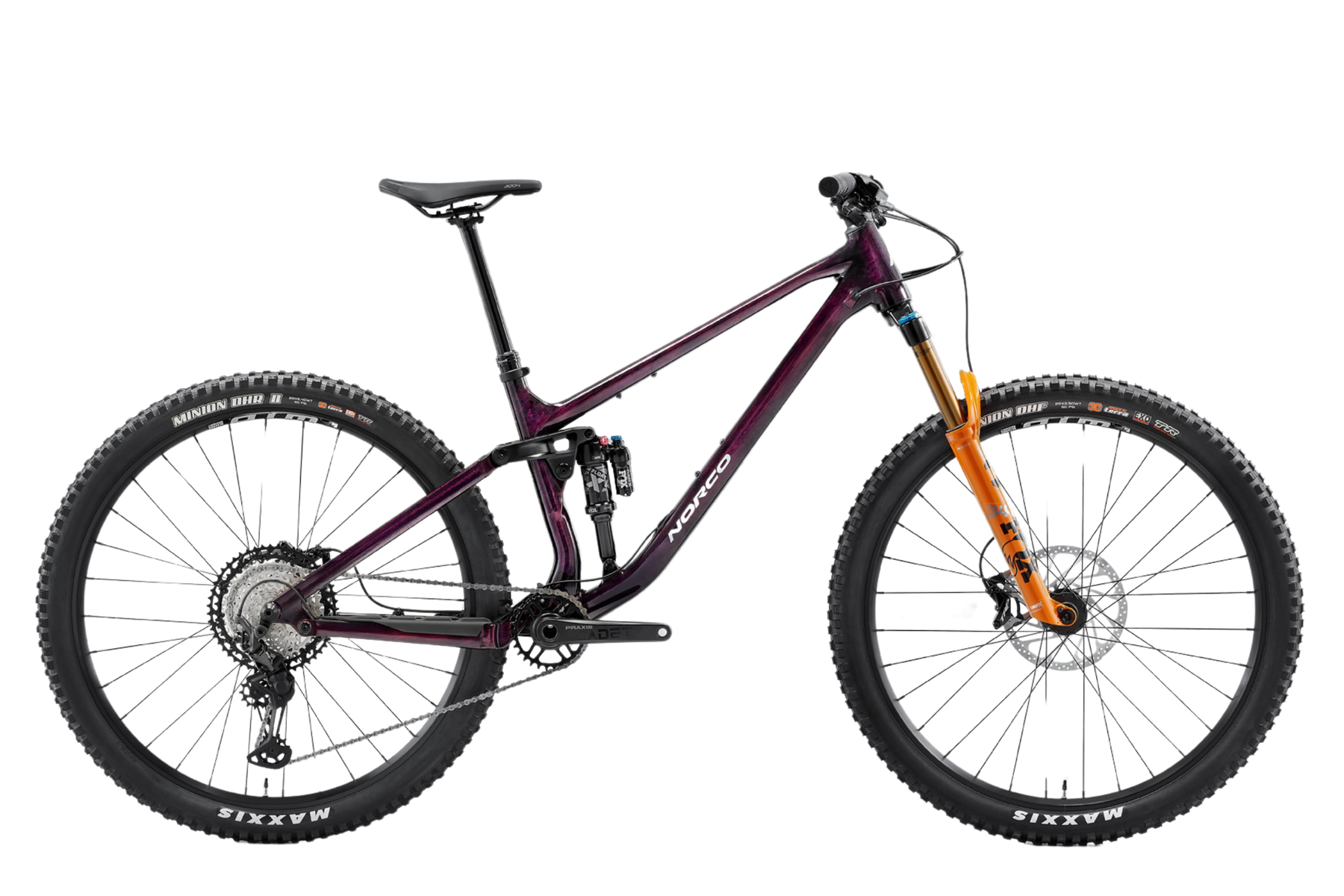

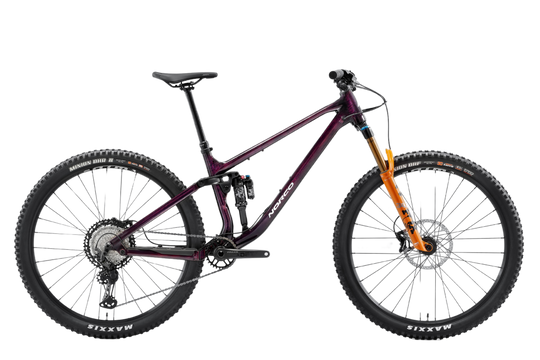

The Norco Fluid FS A1 is built to tackle whatever trail leads to becoming the rider you want to be. Named Pinkbike’s Value Bike of the Year, Vital MTB’s Bike of the Year, and most recently, Bicycling Magazine’s Best Value Trail Bike.
| Frame | 6061 Alloy, 130mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |
| Fork | Fox 34 Factory GRIP2, 140mm Travel, 44mm Offset |
| Rear Shock | Fox FLOAT X Performance Elite, 2-pos, 210x50mm, Custom Tune |
| Rear Shifter | Shimano XT SL-M8100-IR I-Spec EV |
| Rear Derailleur | Shimano XT RD-M8100 |
| Crankset | Praxis G2 Cadet M24, 30T, 170mm (S), 175mm (M - XXL) |
| Bottom Bracket | Praxis M24, BSA Threaded |
| Cassette | Shimano XT CS-M8100, 10-51, 12 Speed |
| Chain | Shimano XT CN-M8100 |
| Front Brake | TRP Trail EVO, 4 Piston, Organic Pads |
| Front Brake Rotor | TRP TR203-29, 203mm |
| Rear Brake | TRP Trail EVO, 4 Piston, Organic Pads |
| Rear Brake Rotor | TRP TR180-29, 180mm |
| Brake Levers | TRP Trail EVO |
| Handlebar | 6061 Butted Alloy, 800mm, 25mm Rise |
| Stem | 6061 Alloy, 40mm Length, 35mm Clamp |
| Seatpost | TranzX YSI34 Dropper, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL, XXL) |
| Headset | Sealed Bearing, Tapered |
| Headset Spacer | 2x10mm & 1x5mm- Black |
| Saddle | SDG Bel Air V3 Lux Alloy |
| Grips | WTB Wavelength |
| Pedals | VP Nylon Flat |
| Seatpost Clamp | Norco Alloy Nutted Clamp |
| Front Hub | Bear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt |
| Rear Hub | Bear Pawls Sealed Bearing, 12x148mm Boost, Micro Spline, 6 Bolt |
| Rims | WTB ST Light, 29", 32H |
| Front Tire | Continental Kryptotal Trail 2.4", Folding |
| Rear Tire | Continental Xynotal Trail 2.4", Folding |
| Spokes/Nipples | Stainless, Black |
| Weight | 15.9 kg (35.0 lbs) |
| Weight Size | Large |
| S | M | L | XL | XXL |
|---|---|---|---|---|
| 29" | 29" | 29" | 29" | 29" |
| Travel (mm front/mm rear) | ||||
|
140/130
|
||||
| Reach | ||||
| 420 | 450 | 480 | 510 | 540 |
| Stack | ||||
| 617 | 626 | 635 | 644 | 653 |
| HTA Head Tube Angle | ||||
|
65
|
||||
| OS Fork Offset | ||||
|
44
|
||||
| ST Seat Tube Length | ||||
| 360 | 390 | 410 | 460 | 510 |
| STA Effective Seat Tube Angle | ||||
| 76 | 76.3 | 76.7 | 77 | 77.3 |
| RC Rear Centre Length | ||||
| 425 | 430 | 435 | 440 | 445 |
| BB Bottom Bracket Drop | ||||
|
30
|
||||
| BBH Bottom Bracket Height | ||||
|
348
|
||||
| HTT Horizontal Top Tube | ||||
| 574 | 602 | 630 | 659 | 687 |
| WB Wheelbase | ||||
| 1166 | 1205 | 1245 | 1284 | 1323 |
| SOH Standover | ||||
| 678 | 690 | 699 | 736 | 767 |
| HT Head Tube Length | ||||
| 110 | 120 | 130 | 140 | 150 |
| Trail | ||||
|
128
|
||||
| Recommended Seatpost Drop | ||||
| 150 | 170 | 200 | 200 | 200 |
| Maximum Post Insertion | ||||
| 250 | 270 | 300 | 300 | 300 |
| Stem Length | ||||
|
40
|
||||
| Crank Length | ||||
|
175
|
||||
| Tire Size | ||||
|
2.4" – 2.6"
|
||||
| Water Bottle Compatible | ||||
| 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL and 1 x 620 mL |
