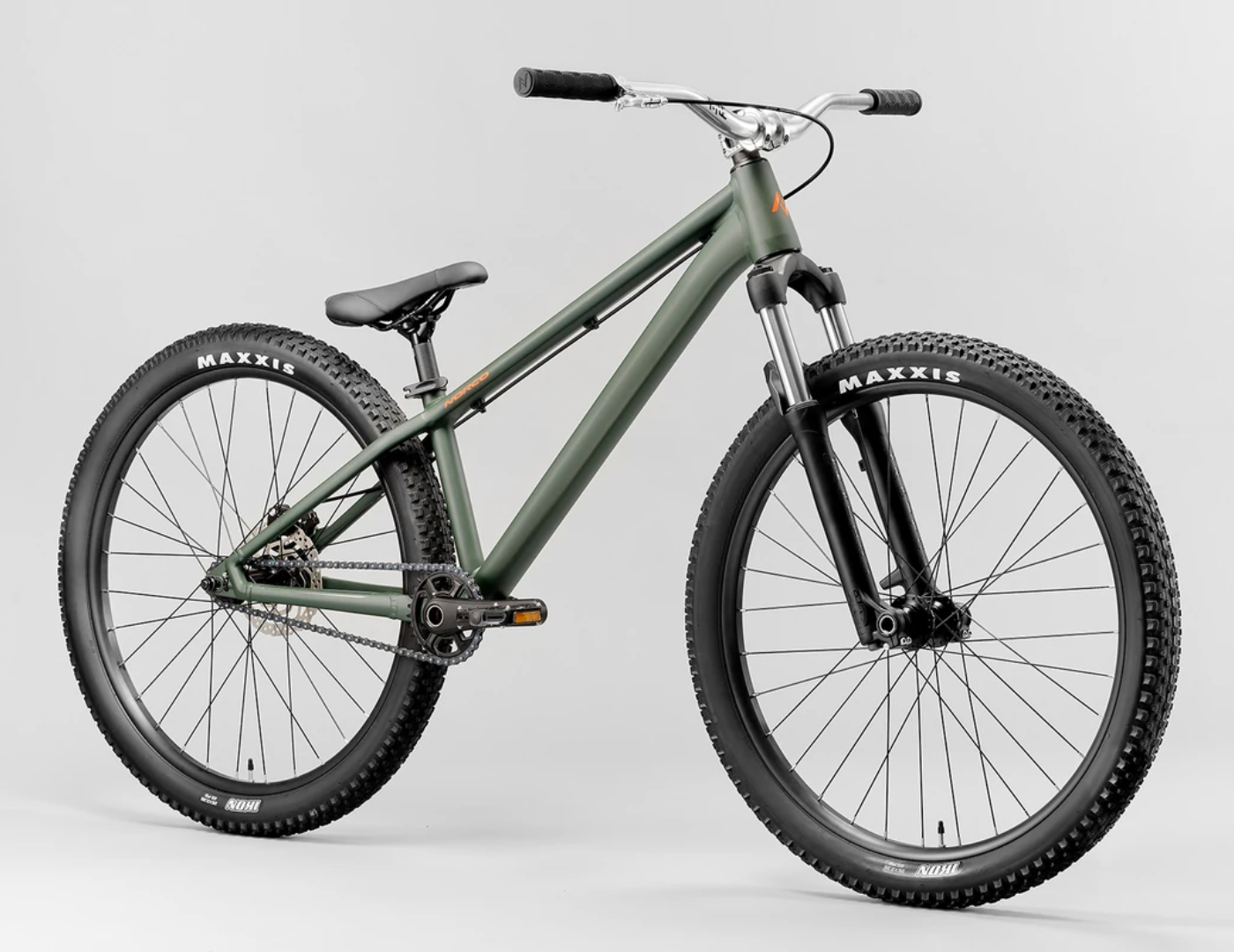

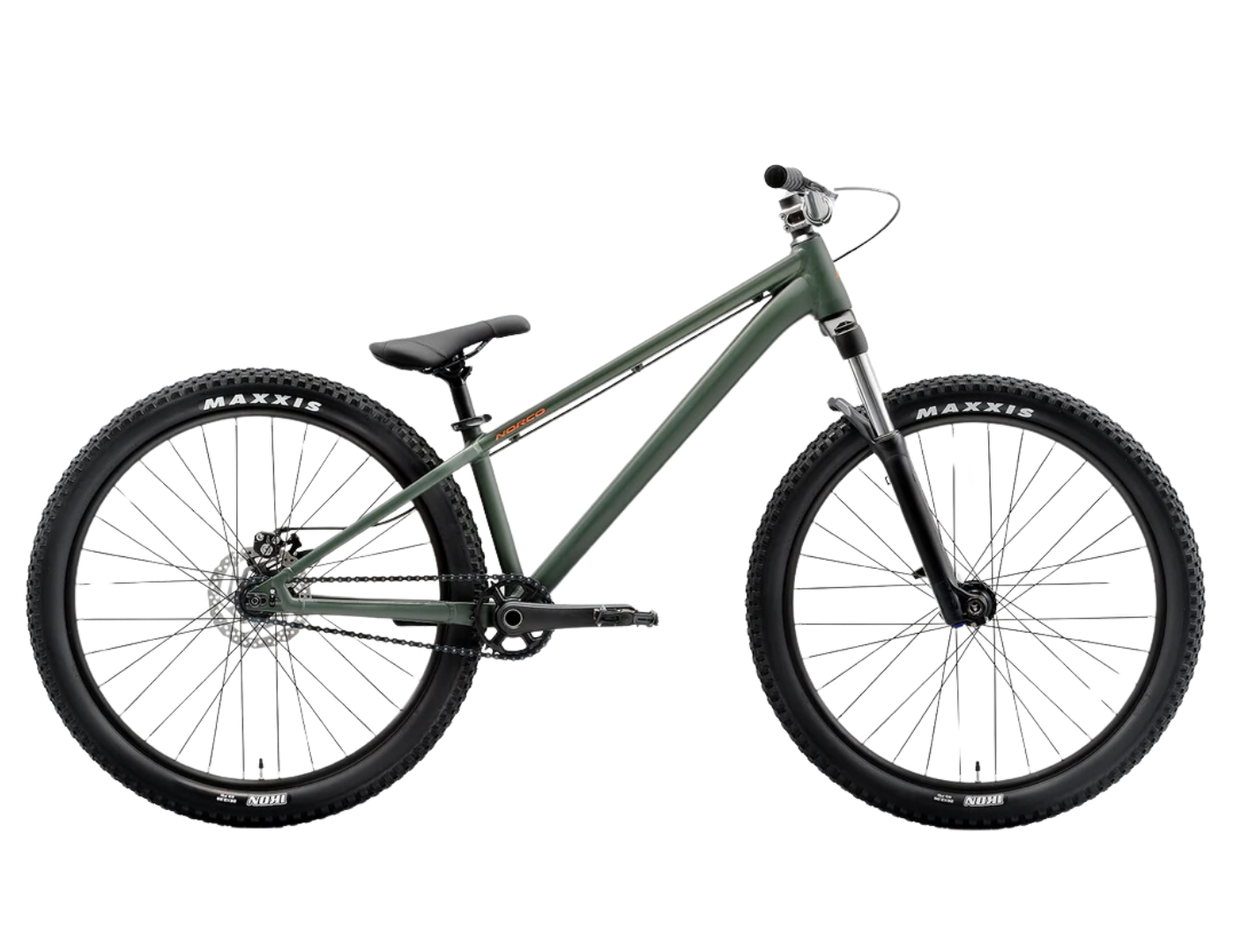

Name: Rampage 1 2025
Brand: Norco
Price: 1999.0 NZD
Availability: InStock

$1,999.00

Tax included.

Quantity

[{"id":45994602561761,"title":"SM","option1":"SM","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rampage 1 2025 - SM","public_title":"SM","options":["SM"],"price":199900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45994602594529,"title":"MD","option1":"MD","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rampage 1 2025 - MD","public_title":"MD","options":["MD"],"price":199900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45994602627297,"title":"LG","option1":"LG","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rampage 1 2025 - LG","public_title":"LG","options":["LG"],"price":199900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

Description

The Rampage 1 is purpose-built for big air, taking inspiration from two decades of riding and building dirt jumpers with a light but strong frame and balanced, agile geometry for finding your flow.

Specification

FRAME	Aluminum DJ 26"
FORK	Manitou Circus Comp, 100mm, 20x110mm
HEADSET	Tapered 1-1/8"- 1.5",(ZS44/28.6 \| ZS56/40)
GRIPS	Norco w/small flange, 130mm length
HANDLE BAR	Title AH1, 800mm, 38mm rise
STEM	Norco, 40mm Length, 31.8 Clamp
SEAT POST	Kue Q pivotal stealth, 27.2mm ID, 200mm Length
SADDLE	Norco Pivotal
FRONT BRAKE	Tektro MD-280, Mechanical, Resin pads
FRONT BRAKE ROTOR	160mm 6 bolt
REAR BRAKE	Shimano Sora BR-R317 mechanical caliper
REAR BRAKE ROTOR	Shimano SM-RT26, 160mm, 6 bolt
BRAKE LEVERS	Title Gyro brake lever
CASSETTE	Single speed, 14T
CHAIN	KMC Z1, 1/2 x 3/32"
CRANKSET	Prowheel Forged 2pc, 30T, 165mm
BOTTOM BRACKET	Sealed Cartridge, ISIS 73mm
FRONT HUB	KT sealed bearing, 20x110mm, 32H, 6 bolt
REAR HUB	KT sealed bearing, 3/8" nutted axle, 32H, 14T SS sproket, 6 bolt
SPOKES/NIPPLES	Stainless Steel, 14g
RIMS	Alex DP 25, 32h, F/R-26"
FRONT TIRE	Maxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding
REAR TIRE	Maxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding

Geometry

Short	Medium	Long
26"	26"	26"
Travel (mm front)
100
Reach
405	435	465
Stack
554	564	573
HTA Head Tube Angle
68.5
OS Fork Offset
40
ST Seat Tube Length
300
STA Effective Seat Tube Angle
75
RC Rear Centre Length
379
BB Bottom Bracket Drop
20
BBH Bottom Bracket Height
328
HTT Horizontal Top Tube
554	586	619
WB Wheelbase
1037	1071	1104
SOH Standover
599
HT Head Tube Length
105	115	125
Trail
94
Maximum Post Insertion
245
Stem Length
35
Crank Length
165
Tire Size
2.35" – 2.5"

Size
