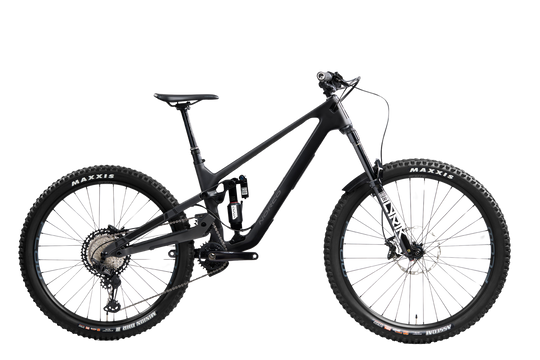

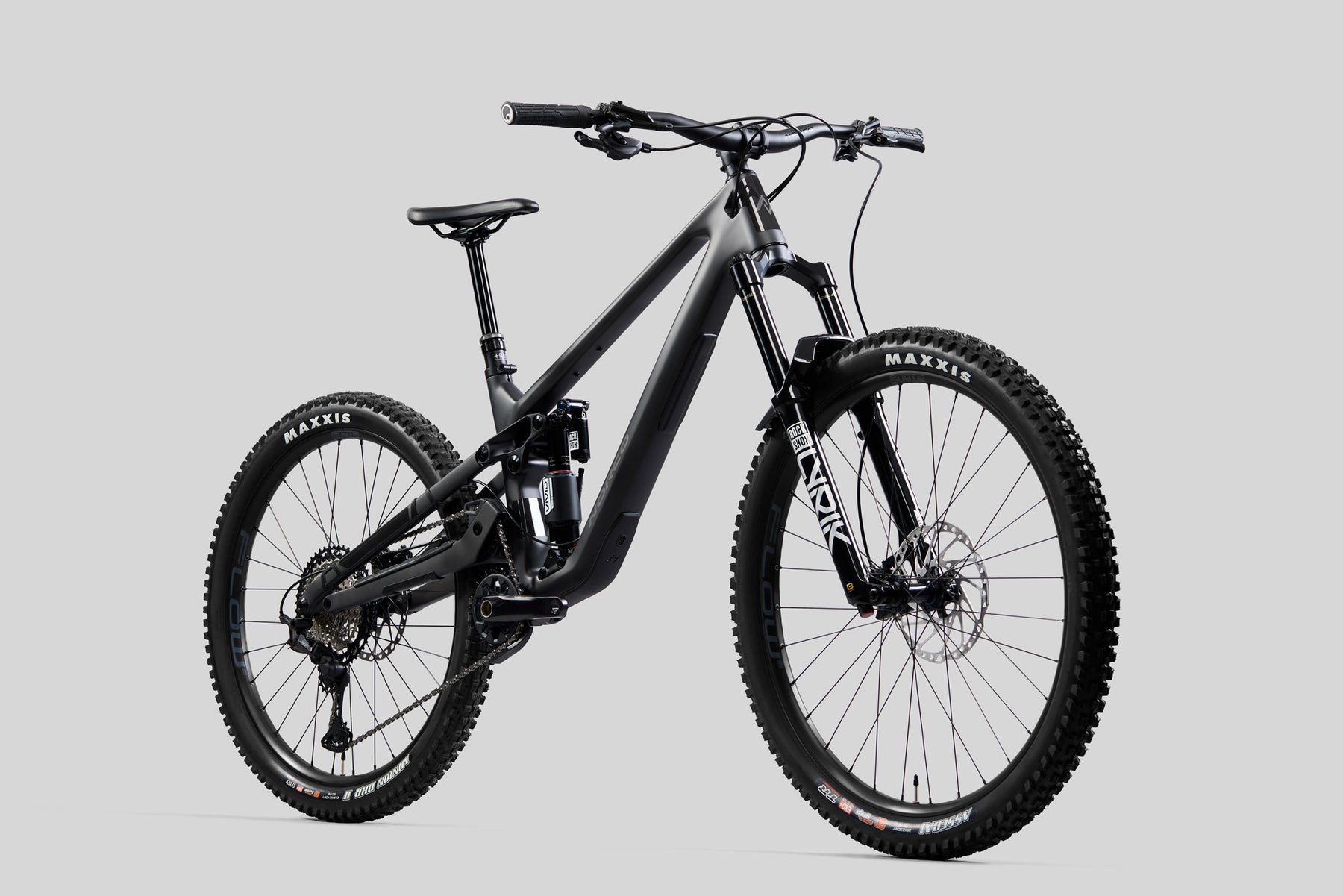

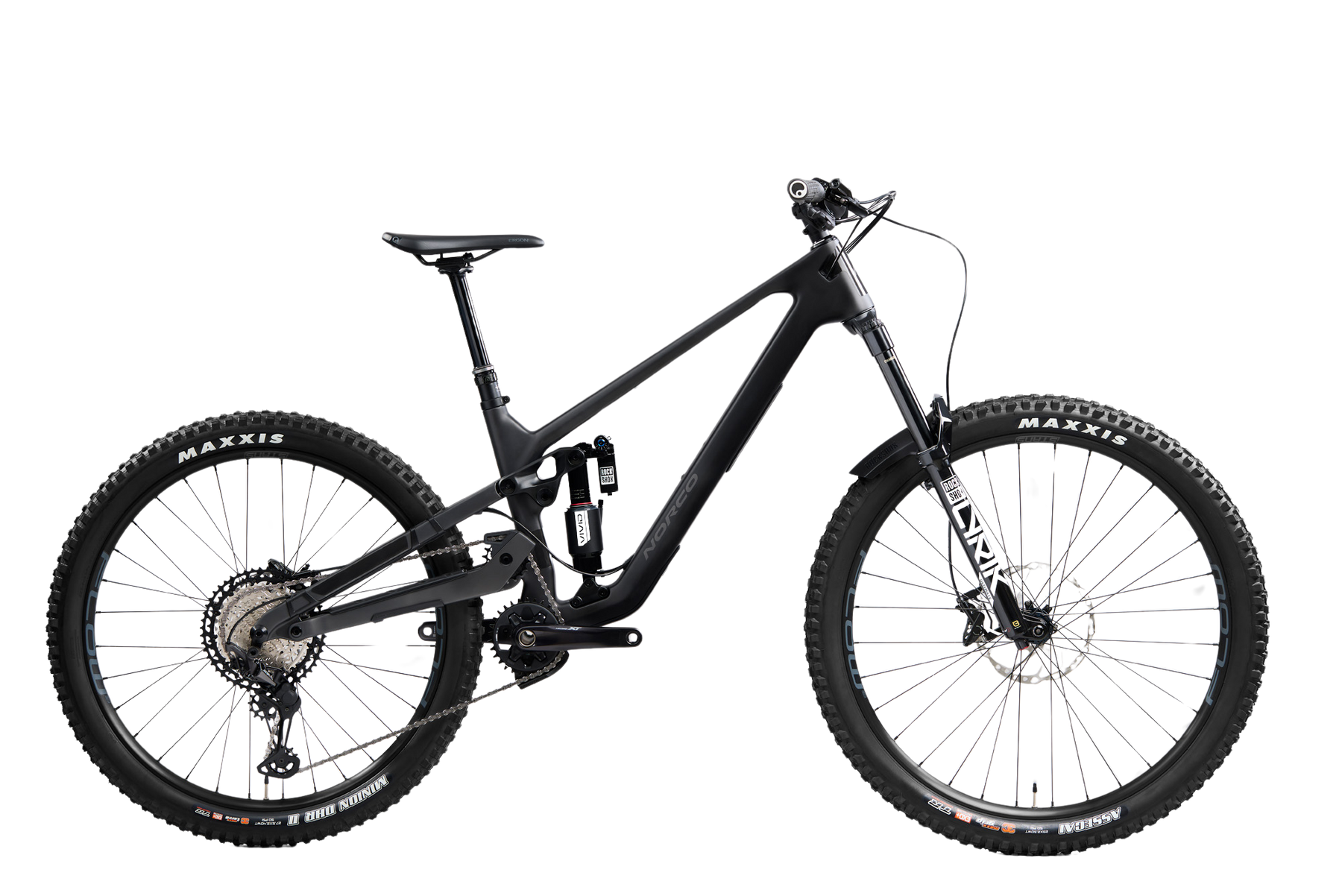

Whether you’re carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2025 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.
| FRAME | Carbon Frame, 150mm Travel, UDH, High Pivot Horst Suspension, Eagle Transmission Compatible, Ride Aligned™ |
| FORK | RockShox Lyrik Ultimate Charger 3.1, 160mm Travel, 44mm offset, Fender Included |
| REAR SHOCK | RockShox Vivid 2 Ultimate Air, 205x60mm TR |
| HEADSET | FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 ) |
| GRIPS | Ergon GE1, Slim (S1, S2) Standard (S3,S4,S5) |

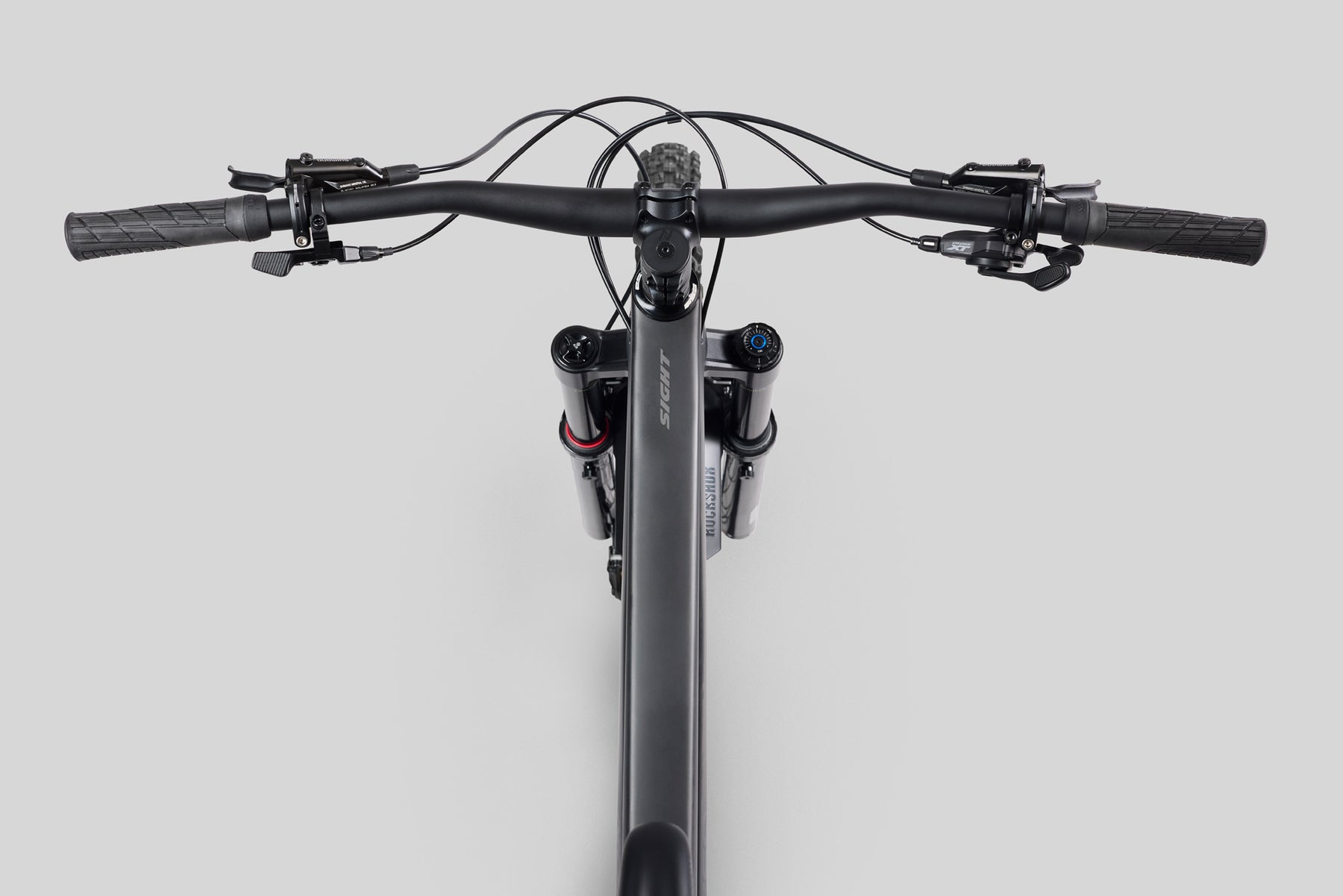

| HANDLE BAR | Norco 6061 DB Alloy, 800mm, 25mm Rise |
| STEM | Norco 6061 Alloy, 40mm Length, 35mm Clamp |
| SEAT POST | TranzX YS105, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5) |
| SADDLE | Ergon SM-10 Enduro |
| FRONT BRAKE | Shimano Deore MT520 4-P, Metallic pads |
| FRONT BRAKE ROTOR | Shimano RT-64, 200mm rotor, C-Lock |
| REAR BRAKE | Shimano Deore MT520 4-P, Metallic pads |
| REAR BRAKE ROTOR | Shimano RT-64, 180mm rotor, C-Lock |
| BRAKE LEVERS | Shimano Deore MT520 4-P |
| SHIFTER REAR | Shimano XT M8100, I-Spec, 12sp |
| REAR DERAILLEUR | Shimano XT M8100, 12sp |
| CASSETTE | Shimano Deore XT M8200, 10-51T, 12sp |
| CHAIN | Shimano XT M8100, 12sp |
| CRANKSET | Shimano Deore XT M8120, 32T, 55CL, 165mm (S1,S2) -170mm (S3,S4,S5) |
| BOTTOM BRACKET | Shimano Sealed Bearing, BSA 73mm |
| FRONT HUB | Shimano SLX,15x110mm Boost, 32H, C-lock |
| REAR HUB | Shimano FH-M7110 SLX, 12x148mm Boost, Micro Spline, 32H, C-lock |
| SPOKES/NIPPLES | DT Competition butted, 1.8/1.6/1.8, stainless steel |
| RIMS | Stan’s Flow S2, 32H, F- 29", R-27,5", 30mm ID |
| FRONT TIRE | Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding |
| REAR TIRE | Maxxis Minion DHR II, 3C Maxx Terra EXO+, 27.5x2.4", Folding |
| Travel (mm front/mm rear) | 29"/27.5" | 1160/150 | 2160/150 | 3160/150 | 4160/150 | 5160/150 |
| 29" | 1160/150 | 2160/150 | 3160/150 | 4160/150 | 5160/150 | |
| Reach | 29"/27.5" | 1422.5 | 2447.5 | 3472.5 | 4497.5 | 5522.5 |
| 29" | 1422.5 | 2447.5 | 3472.5 | 4497.5 | 5522.5 | |
| Stack | 29"/27.5" | 1618 | 2627 | 3636 | 4645 | 5654 |
| 29" | 1618 | 2627 | 3636 | 4645 | 5654 | |
| Head Tube Angle | 29"/27.5" | 164.0 | 264.0 | 364.0 | 464.0 | 564.0 |
| 29" | 164 | 264 | 364 | 464 | 564 | |
| Fork Offset | 29"/27.5" | 144 | 244 | 344 | 444 | 544 |
| 29" | 144 | 244 | 344 | 444 | 544 | |
| Seat Tube Length | 29"/27.5" | 1350 | 2370 | 3385 | 4430 | 5445 |
| 29" | 1350 | 2370 | 3385 | 4430 | 5445 | |
| Effective Seat Tube Angle | 29"/27.5" | 177.00 | 277.25 | 377.50 | 477.75 | 578.00 |
| 29" | 177 | 277.25 | 377.5 | 477.75 | 578 | |
| Rear Centre Length | 29"/27.5" | 1420 | 2424 | 3428 | 4432 | 5436 |
| 29" | 1426 | 2430 | 3434 | 4438 | 5442 | |
| Bottom Bracket Drop (Front/Rear) | 29"/27.5" | 125/4 | 225/4 | 325/4 | 425/4 | 525/4 |
| 29" | 125/25 | 225/25 | 325/25 | 425/25 | 525/25 | |
| Bottom Bracket Height | 29"/27.5" | 1353 | 2353 | 3353 | 4353 | 5353 |
| 29" | 1353 | 2353 | 3353 | 4353 | 5353 | |
| Horizontal Top Tube | 29"/27.5" | 1565 | 2589 | 3613 | 4637 | 5661 |
| 29" | 1565 | 2589 | 3613 | 4637 | 5661 | |
| Wheelbase | 29"/27.5" | 11181 | 21214 | 31247 | 41281 | 51314 |
| 29" | 11186 | 21219 | 31253 | 41286 | 51319 | |
| Standover | 29"/27.5" | 1673 | 2679 | 3685 | 4708 | 5720 |
| 29" | 1673 | 2679 | 3685 | 4708 | 5720 | |
| Head Tube Length | 29"/27.5" | 1105 | 2115 | 3125 | 4135 | 5145 |
| 29" | 1105 | 2115 | 3125 | 4135 | 5145 | |
| Trail | 29"/27.5" | 1135 | 2135 | 3135 | 4135 | 5135 |
| 29" | 1135 | 2135 | 3135 | 4135 | 5135 | |
| Recommended Seatpost Drop | 29"/27.5" | 1150 | 2170 | 3200 | 4200 | 5230 |
| 29" | 1150 | 2170 | 3200 | 4200 | 5230 | |
| Maximum Post Insertion | 29"/27.5" | 1250 | 2270 | 3300 | 4300 | 5330 |
| 29" | 1250 | 2270 | 3300 | 4300 | 5330 | |
| Stem Length | 29"/27.5" | 140 | 240 | 340 | 440 | 540 |
| 29" | 140 | 240 | 340 | 440 | 540 | |
| Crank Length | 29"/27.5" | 1170 | 2170 | 3170 | 4170 | 5170 |
| 29" | 1170 | 2170 | 3170 | 4170 | 5170 | |
| Tire Size | 29"/27.5" | 12.35" – 2.6" | 22.35" – 2.6" | 32.35" – 2.6" | 42.35" – 2.6" | 52.35" – 2.6" |
| 29" | 12.35" – 2.6" | 22.35" – 2.6" | 32.35" – 2.6" | 42.35" – 2.6" | 52.35" – 2.6" | |
| Water Bottle Compatible | 29"/27.5" | 11 x 750 mL | 21 x 750 mL | 31 x 750 mL | 41 x 750 mL | 51 x 750 mL |
| 29" | 11 x 750 mL | 21 x 750 mL | 31 x 750 mL | 41 x 750 mL | 51 x 750 mL |
