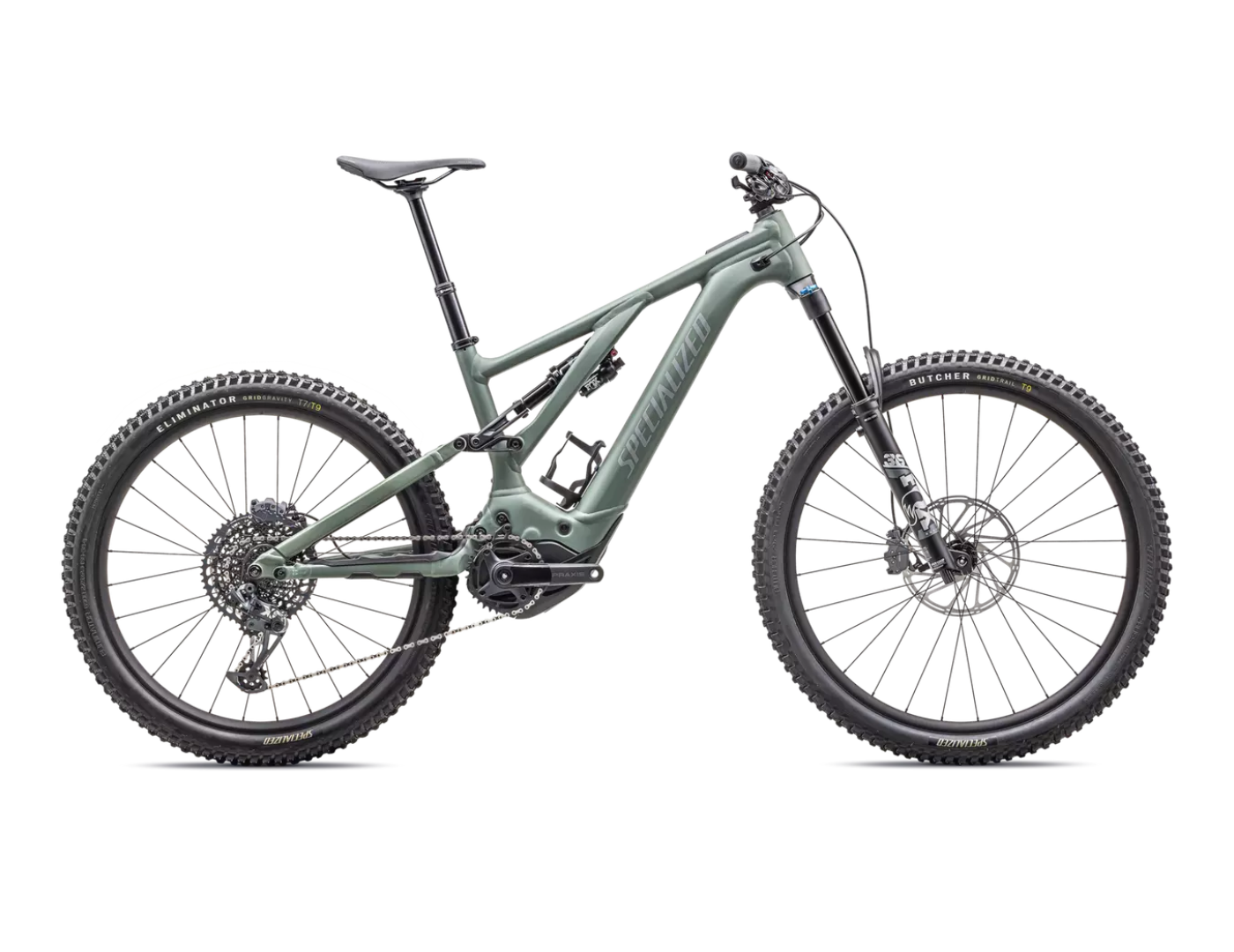

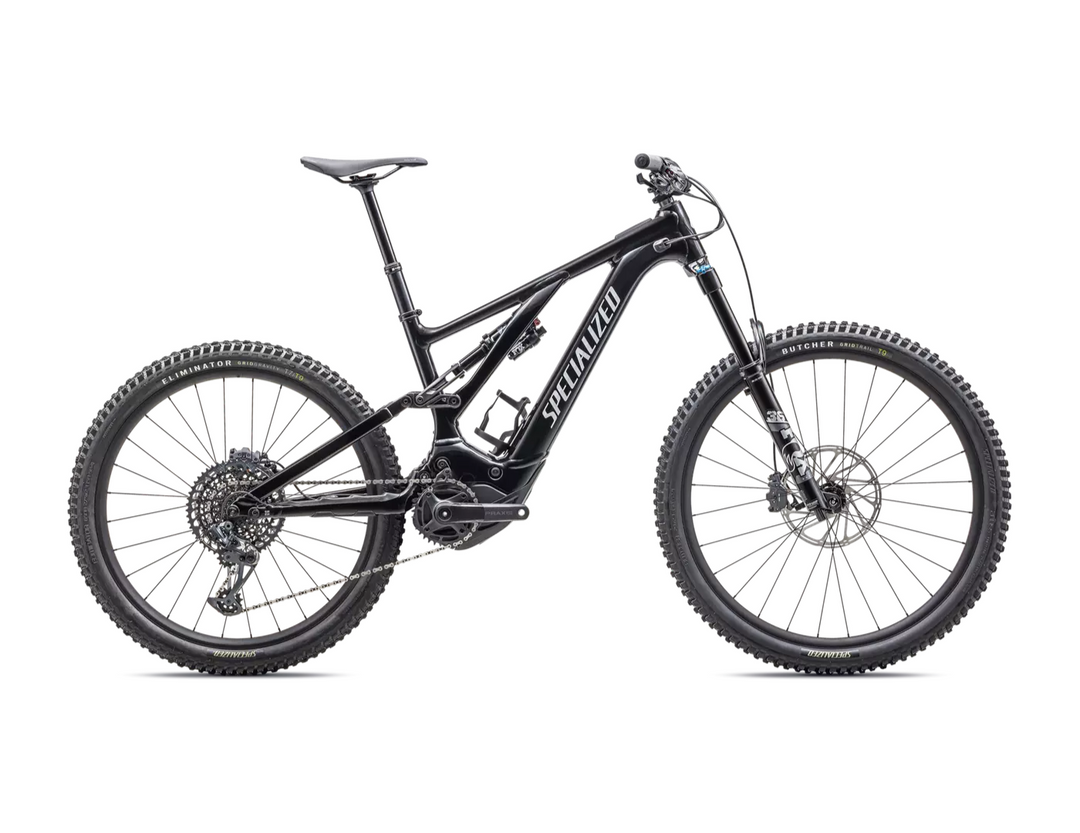

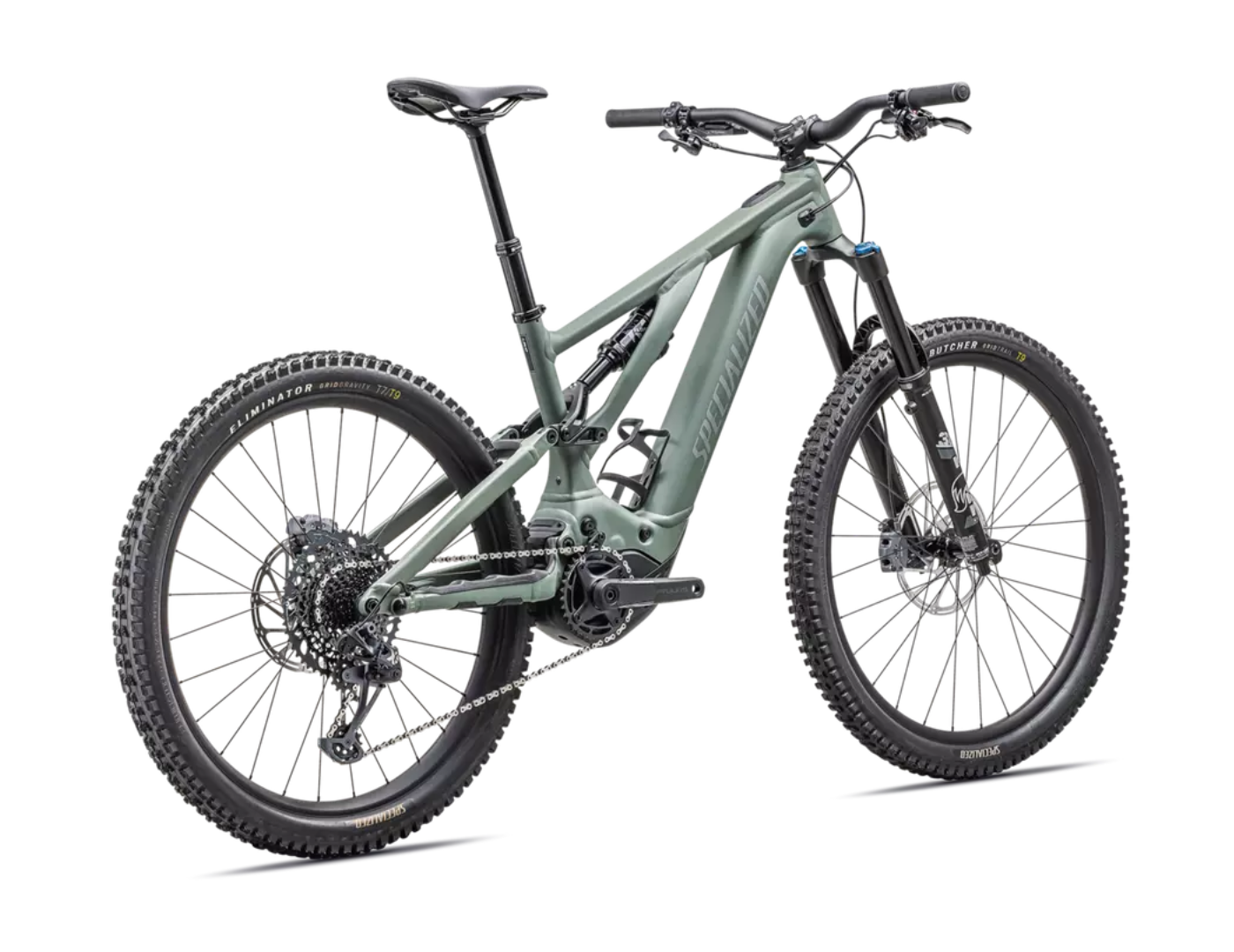

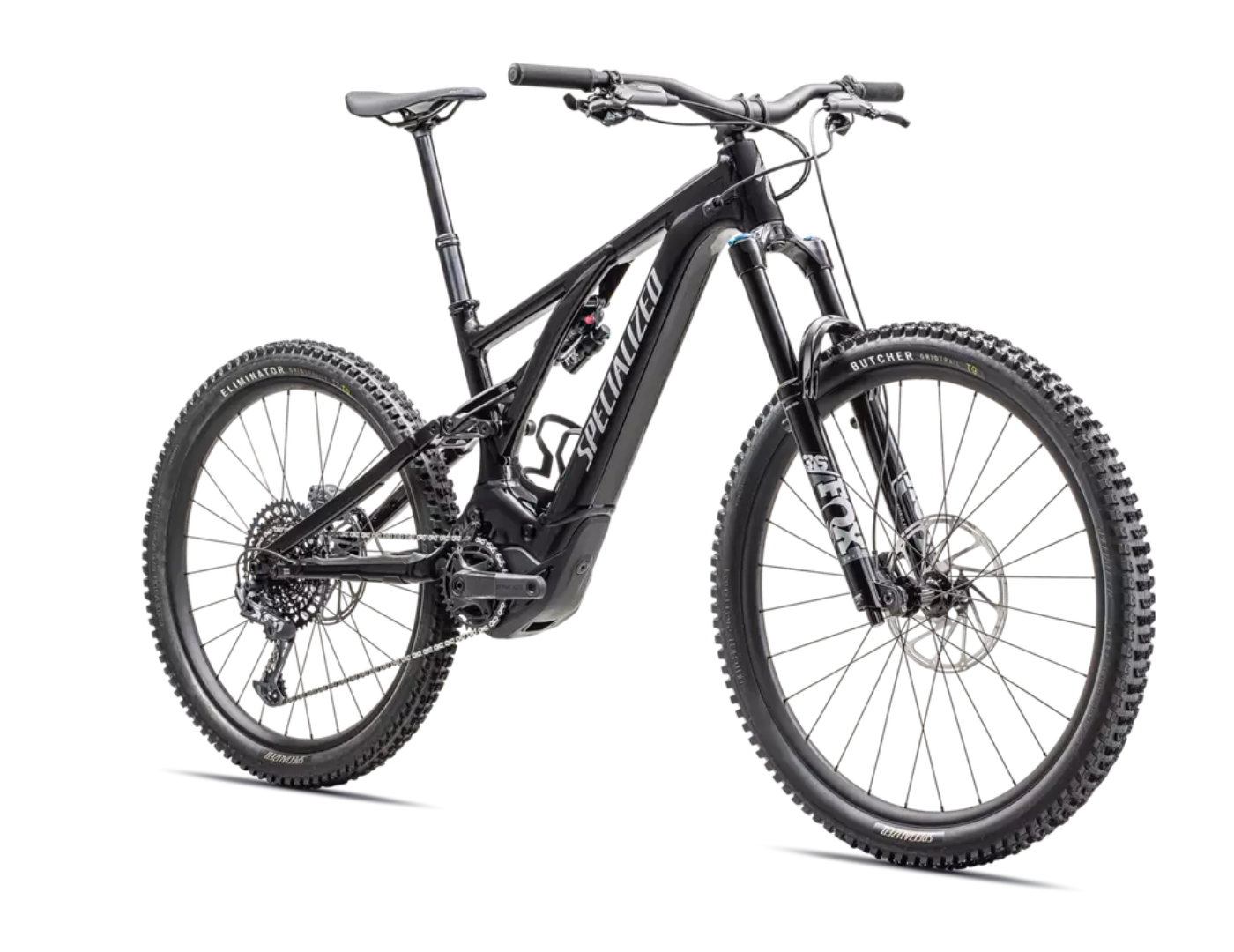

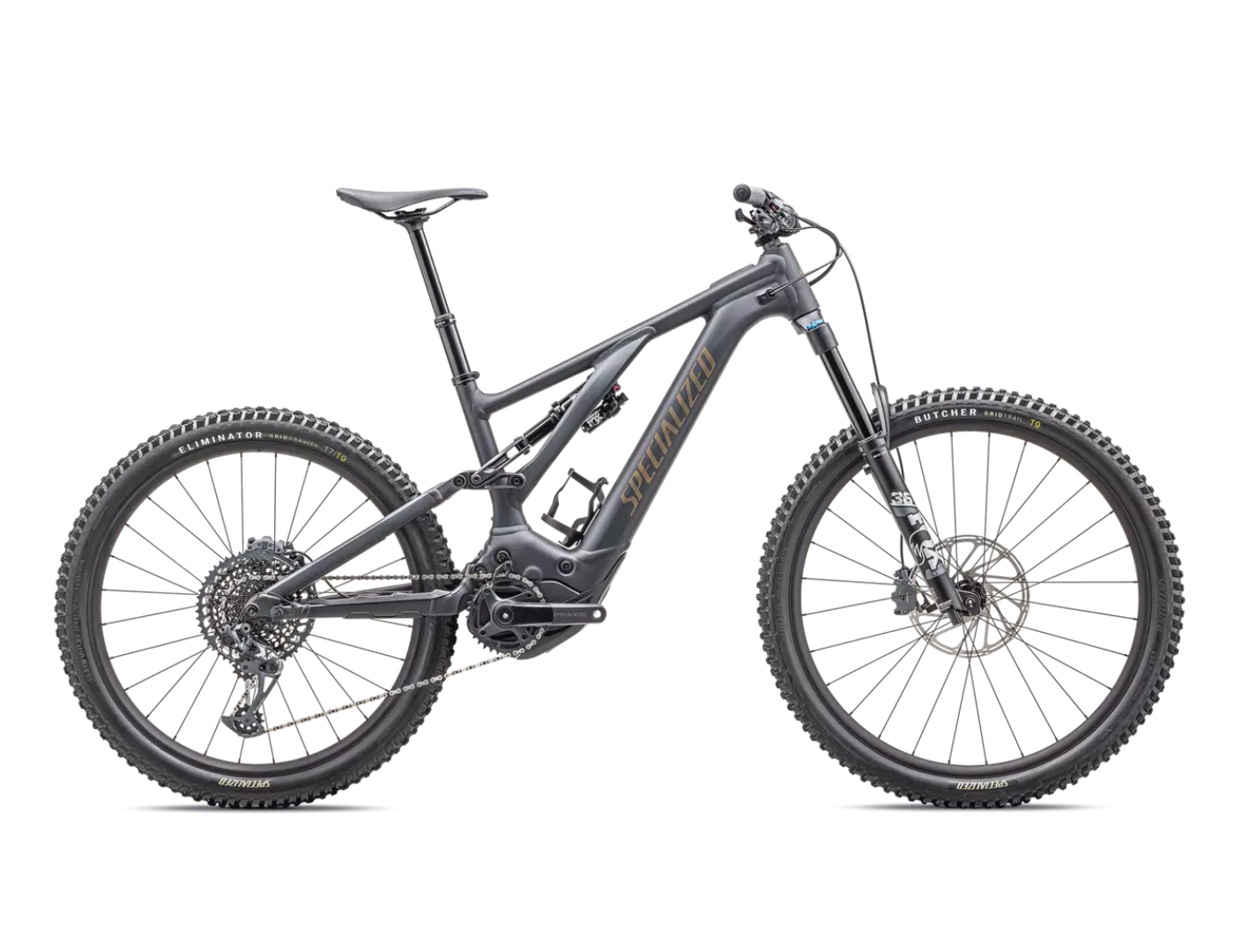

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.
It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.
- Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
- The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.
- A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
- Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
- Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
- The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
- E-bike
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Motor
Specialized 2.1 Custom Rx Trail Tuned Motor
Battery
Specialized M3-700, Integrated battery, 700Wh
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Saddle

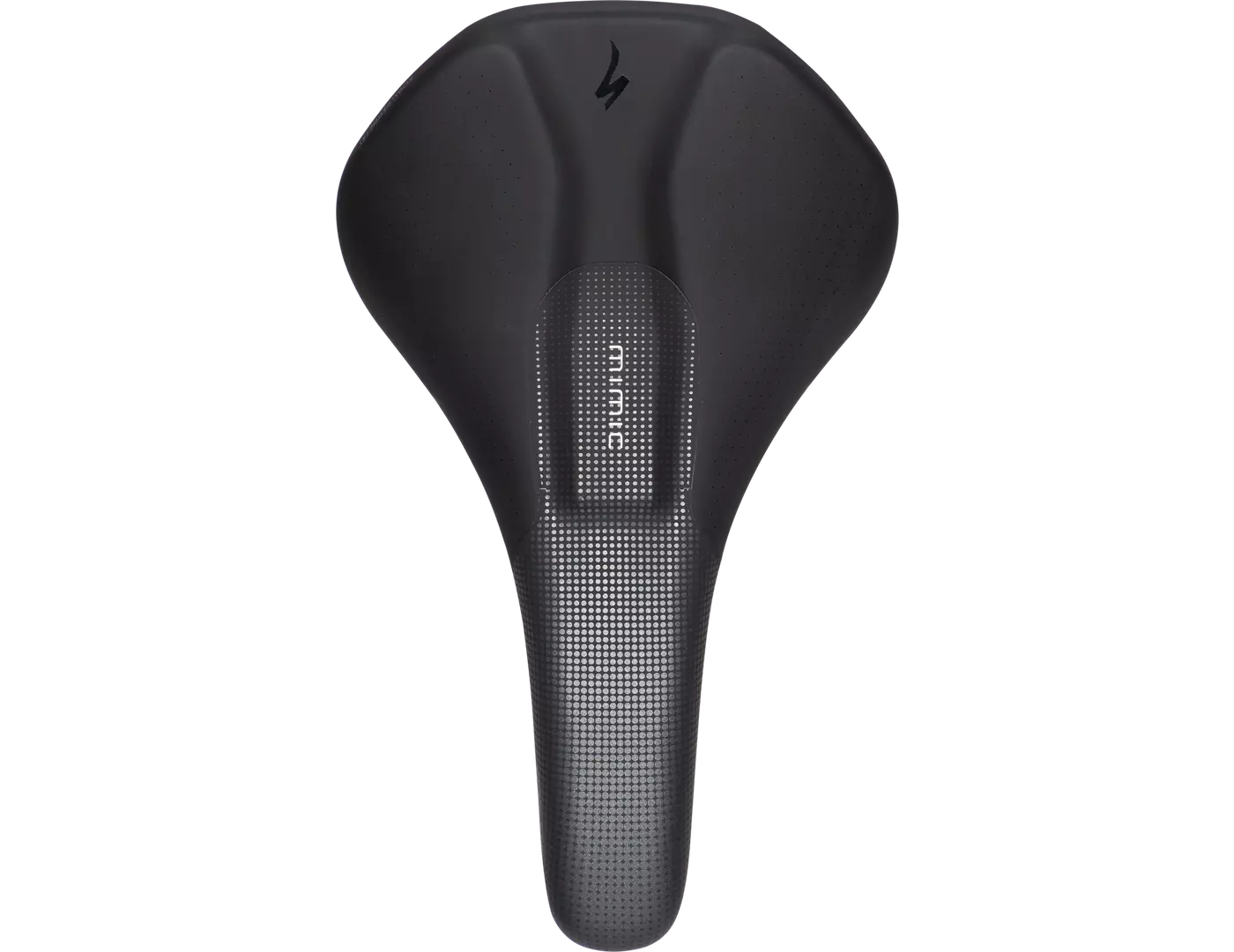

Bridge Comp, Hollow Cr-mo rails, 155/143mm
Handlebars
6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise
Grips
Specialized Trail Grips
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
Frameset
Seat Binder
Alloy, 38.6mm
Frame
Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Suspension
Fork
Fox 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, Grip damper
Rear Shock
FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
Brakes
Front Brake
SRAM Maven Bronze, 220mm rotor, metallic pads
Rear Brake
SRAM Maven Bronze, 200mm rotor, metallic pads
Drivetrain
Crankset
Praxis forged M30, custom offset, 160mm
Chain
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX Eagle, trigger, 12-speed, single click
Chainrings
SRAM X-Sync Eagle, 104 BCD, 32T, steel
Rear Derailleur
Sram X01 Eagle, 12-speed
Cassette
Sram XG-1275, 12-speed, 10-52t
Wheels & tires
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Spokes
DT Swiss Industry
Rear Tire
Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3"
Rear Hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard 40mm PV 29/27.5x1.75-2.4
Accessories
Pedals
PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Size | S1 | S2 | S3 | S4 | S5 | S6 |
---|---|---|---|---|---|---|
Crank Length | 160 | 160 | 160 | 160 | 160 | 160 |
Handlebar Width | 780 | 780 | 780 | 780 | 780 | 780 |
Stem Length | 40 | 40 | 40 | 40 | 50 | 50 |
Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
Seatpost Length | 100 | 125 | 150 | 170 | 170 | 190 |
Stack | 605 | 617 | 626 | 635 | 644 | 653 |
Reach | 412 | 432 | 452 | 477 | 502 | 532 |
Headtube Length | 105 | 105 | 115 | 125 | 135 | 145 |
Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
BB Height | 352 | 350 | 350 | 350 | 350 | 350 |
BB Drop | 25 | 27 | 27 | 27 | 27 | 27 |
Trail | 130 | 130 | 130 | 130 | 130 | 130 |
Fork Length (full) | 557 | 567 | 567 | 567 | 567 | 567 |
Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
Front Center | 738 | 760 | 784 | 814 | 843 | 878 |
Chainstay Length | 442 | 442 | 442 | 442 | 442 | 442 |
Wheelbase | 1179 | 1200 | 1225 | 1255 | 1284 | 1318 |
Bike Standover Height | 752 | 776 | 783 | 787 | 788 | 790 |
Seat Tube Length | 380 | 390 | 405 | 425 | 445 | 465 |
Seat Tube Angle | 78 | 77.2 | 76.7 | 76.2 | 76.2 | 76.2 |
Max Seatpost Insertion | 210 | 220 | 240 | 255 | 275 | 295 |
Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
