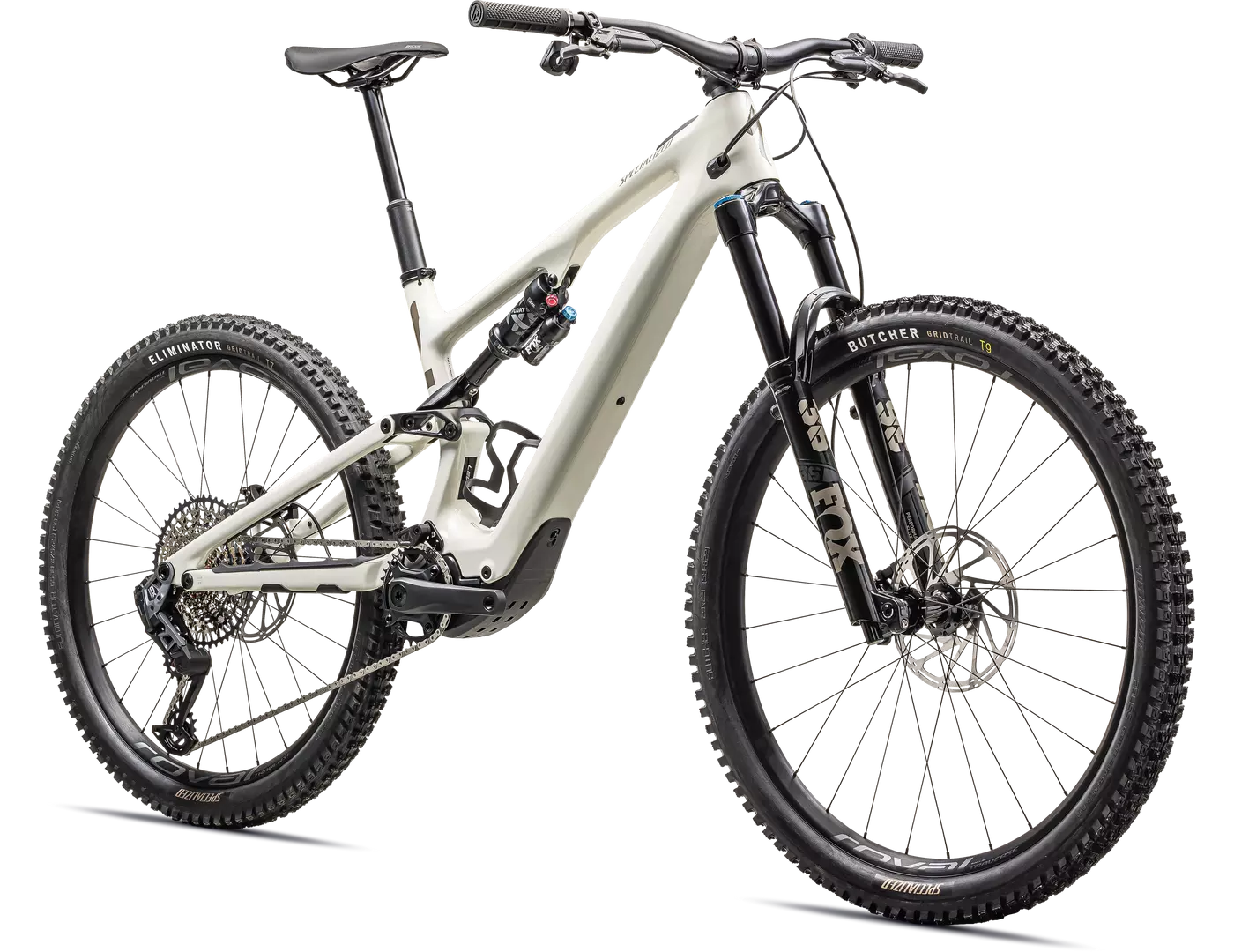

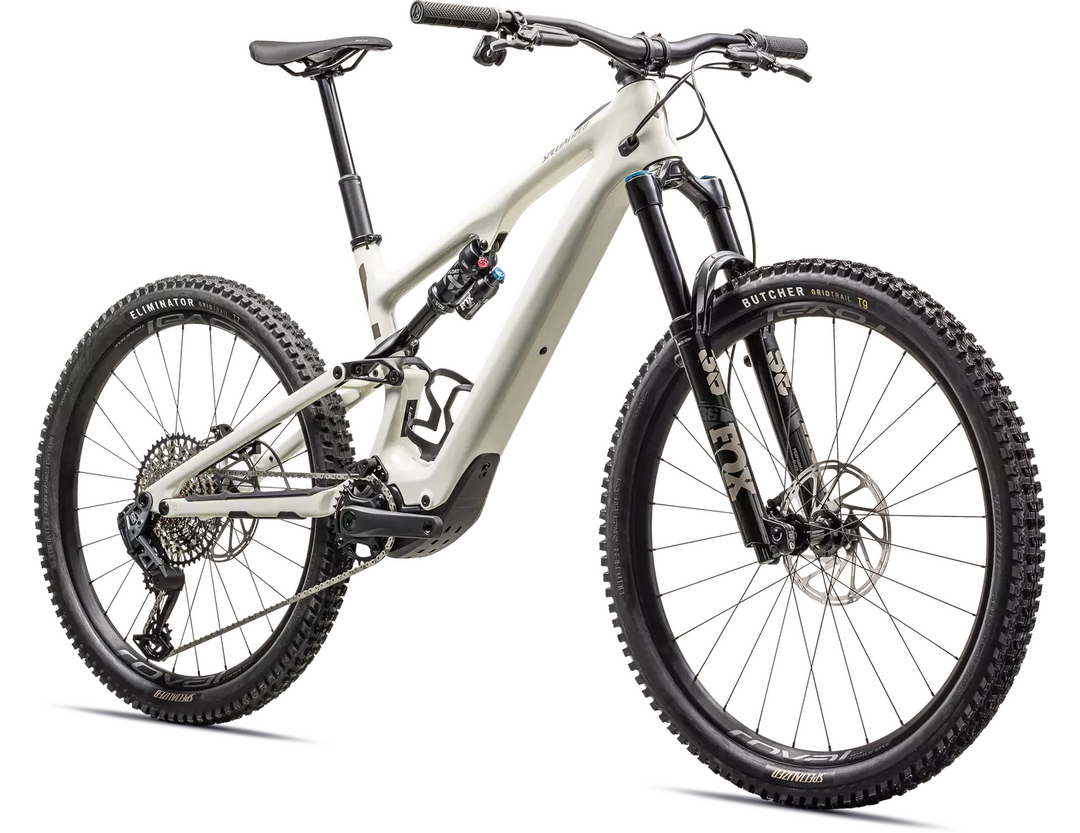

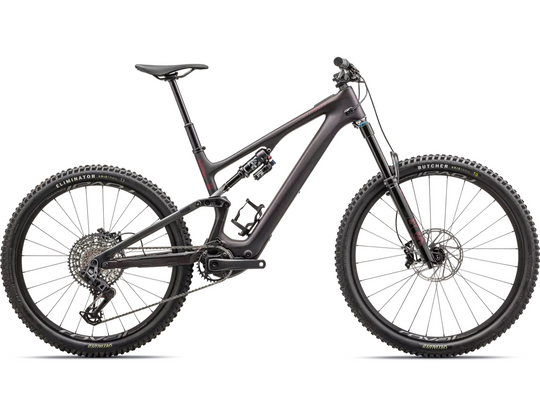

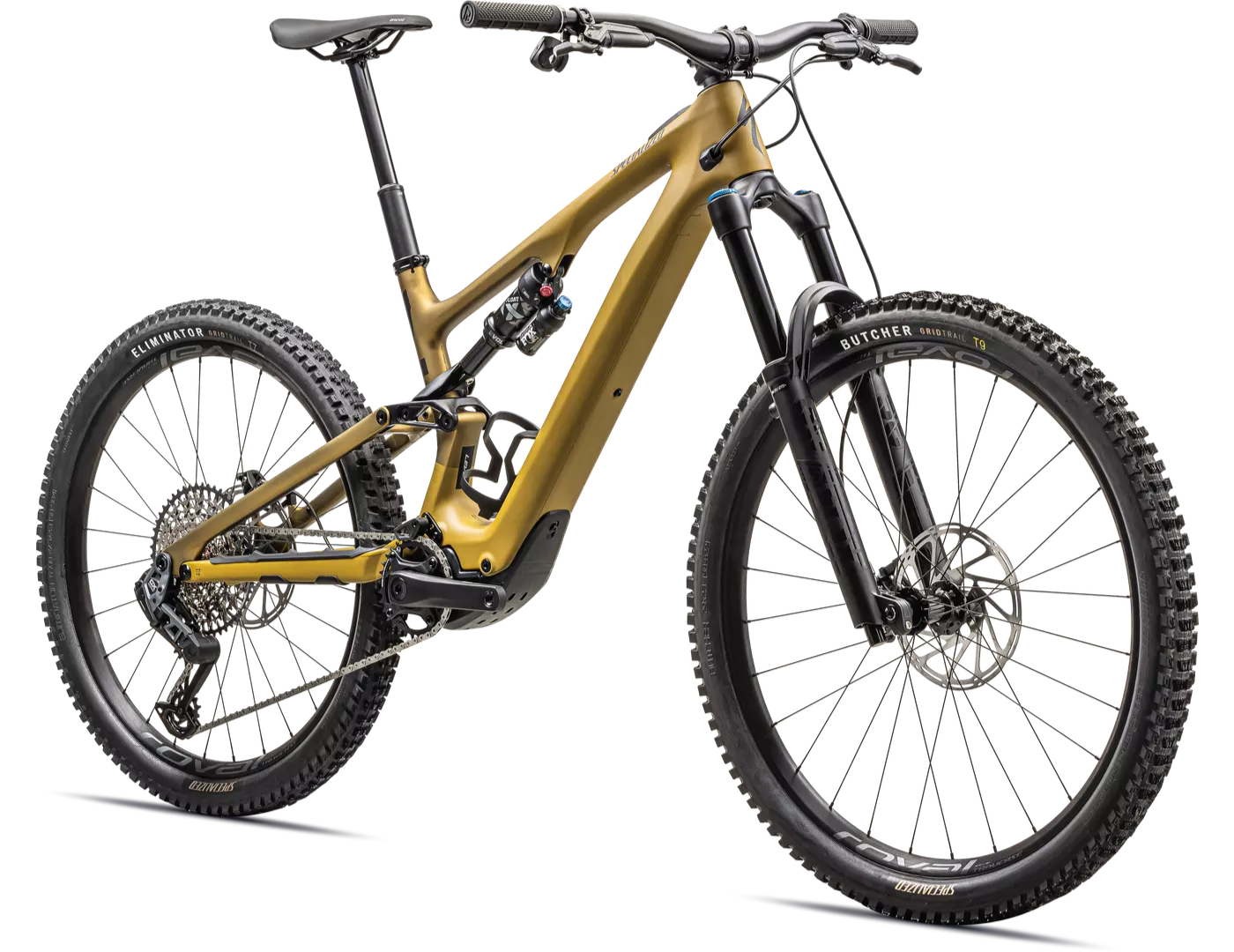

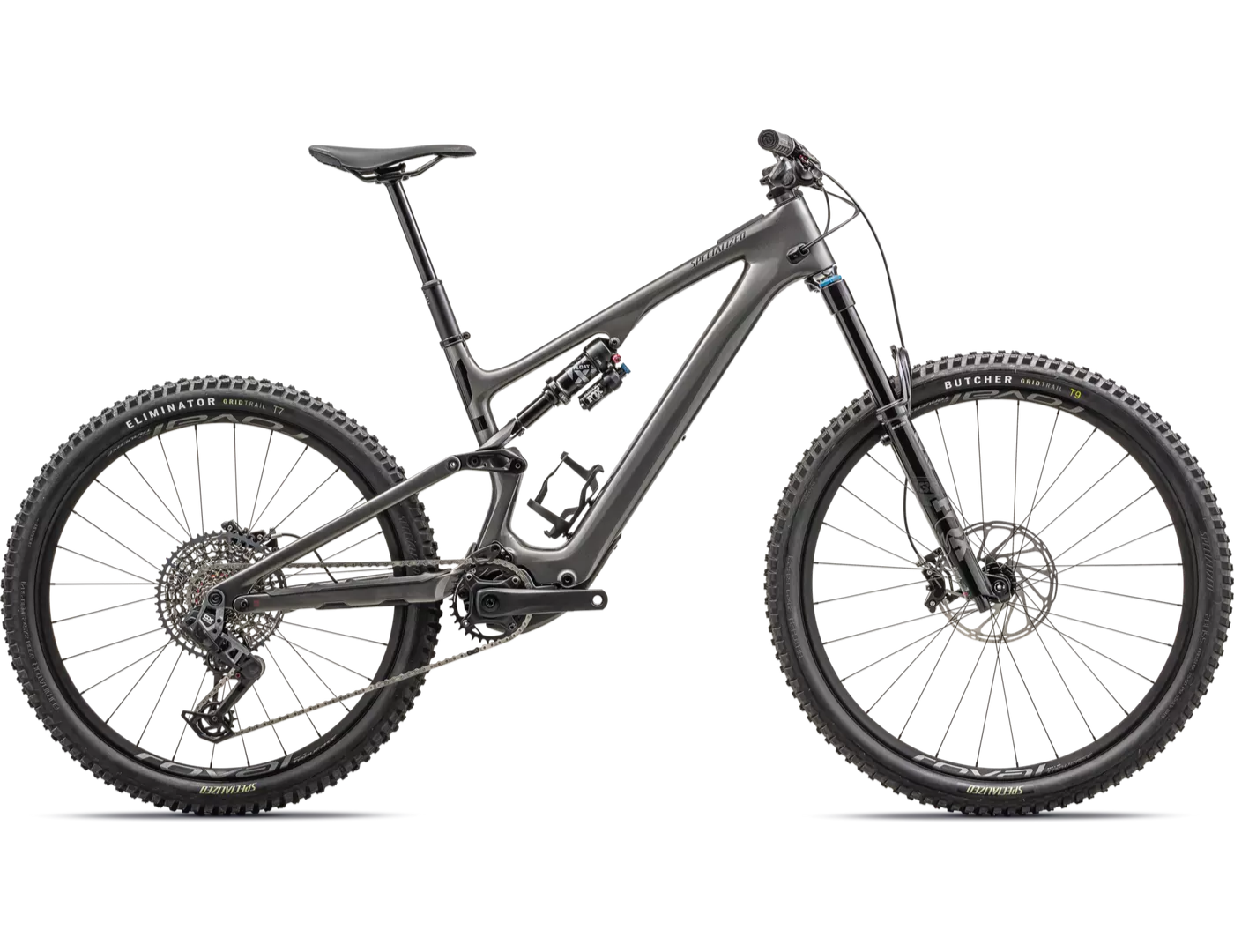

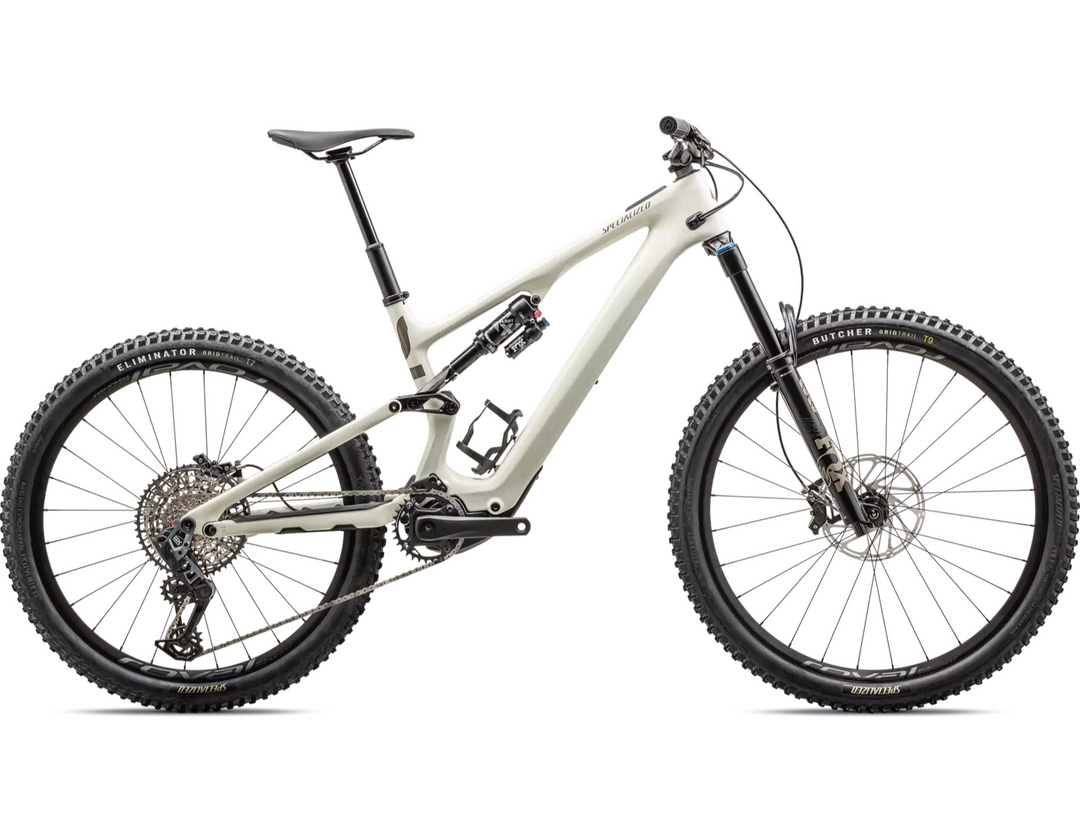

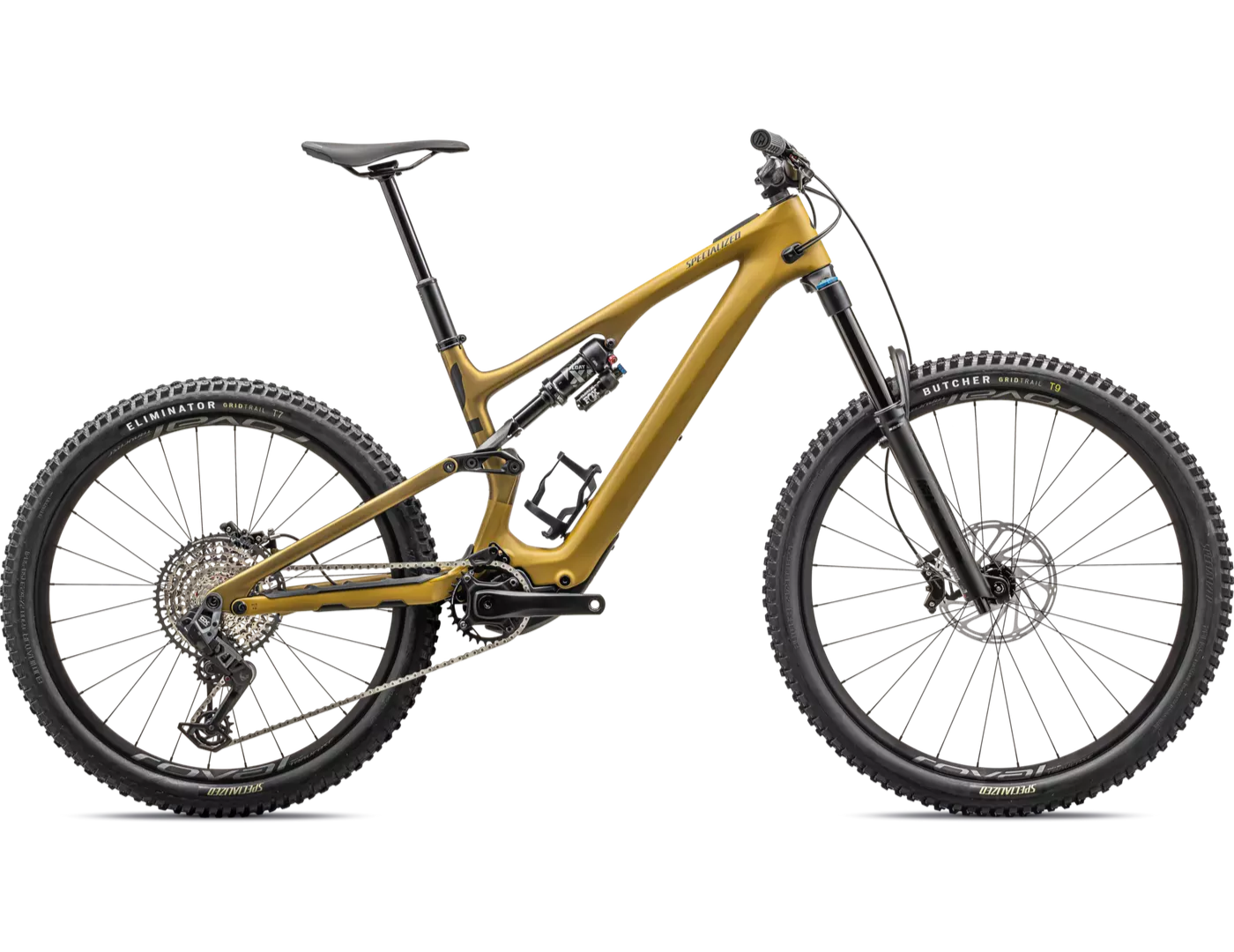

Turbo Levo SL Expert Carbon 2023
Turbo Levo SL Expert Carbon 2023
Turbo Levo SL Expert Carbon 2023
Turbo Levo SL Expert Carbon 2023
Turbo Levo SL Expert Carbon 2023
Turbo Levo SL Expert Carbon 2023
Turbo Levo SL Expert Carbon 2023
Turbo Levo SL Expert Carbon 2023

Turbo Levo SL Expert Carbon 2023

Regular price$16,900.00
/
Tax included.

The Levo SL delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and “2 X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree — Levo SL is THE ULTIMATE TRAIL BIKE.

IT’S ALL ABOUT THE RIDE — When everything works just right a bike disappears when you ride it. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to nail big moves. Its dialed geometry, kinematics, and shock tuning leave nothing desired.

THE FRAME OF REFERENCE — Everything starts here. Lively, precise ride feel. Strategic carbon fiber layup provides super-responsive chassis stiffness. We tuned the entire chassis—front end, rear end, and the link that unifies them—as a single unit to minimize lateral flex under pedaling to harness every bit of pedal force.

GEOMETRY OF CONTROL — The cockpit centers you in the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle, and reduced fork offset keep things stable in the rough while giving you the freedom to destroy the turns. The head angle can be personalized to, 63, 64.25, and 65.5 degrees.

LESS IS MORE – The Levo SL is greyhound lean and telepathically responsive. Its curated component selection is light, yet capable—for true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.

MIXED WHEEL — A 29” front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a compact chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.

TURBO OPERATING SYSTEM — Our seamlessly-integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

SPECIALIZED SL 1.2 MOTOR — The all new Specialized SL 1.2 motor is whisper quiet, boasts unmatched smoothness, delivers 43% more torque (50Nm), and 33% more power (320 Watts) than its predecessor. Resulting in “2x You” performance; it’s you pedaling, but a side of you only a Levo can bring out.

GO DEEP RANGE — Levo SL features a premium, high quality, and seamlessly integrated 320Wh battery pack. Combined with the efficient motor, you’re set up for long, epic rides of up to 5 hours (in Eco Mode). For longer rides, just slide our 160 Wh Range Extender (sold separately) into your bottle cage—for 50% more range.

MASTERMIND TCU — Our most advanced and intuitive e-bike control unit. Connecting the bike, the Turbo OS, the Specialized app as well as the rider, all in a protected and easily visible display. With MicroTune fine-tuning power output levels in real time is at your fingertips, optimizing range management and performance.

SPECIALIZED APP — The Levo SL integrates fully with our Specialized app and lets you personalize your motor characteristics. You can say goodbye to range anxiety with Smart Control, and even thwart would-be thieves with Turbo System Auto-Lock.

  • All new carbon frame, comes in mixed wheel configuration (compatible to 29 rear with no extra parts needed.) New kinematic with flatter leverage curve which provides more support and playfulness off the top, but plenty of control in rougher conditions. The headtube angle and bottom bracket height are both adjustable.
  • New SRAM GX Eagle Transmission
  • New SRAM Code Stealth Silver brakes
E-bike
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 48V System w/ SL system charger plug
Motor
Specialized 1.2 SL Custom Rx Trail Tuned Motor
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
Frameset
Seat Binder
Alloy, 38.6mm
Frame
All new Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Suspension
Rear Shock
S2-S6: Fox Float X Performance elite series, 210x55mm, S1: Fox Float DPS Performance elite series, , 210x50mm
Fork
Fox 36 Performance Elite, 29", 44mm offset, Grip 2 damper, S1: 150mm, S2-S6:160mm
Brakes
Front Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm
Rear Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm
Drivetrain
Chainrings
New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Shift Levers
SRAM AXS POD Controller
Chain
SRAM CN GX T-TYPE XXX LINK
Cassette
SRAM CS XS 1275 T-TYPE 10-52
Crankset
SRAM Alloy Crankset, Dub interface
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Wheels & tires
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Inner Tubes
Standard, Presta Valve
Rear Wheel
Traverse 27.5
Front Wheel
Traverse 29
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Grips
Deity Grips
SeatPost
OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
Handlebars
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 780mm, 35mm clamp
Accessories
Pedals
PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Weight
Weight
18.25kg (40 lb, 3.7 oz)
Weight Size
S4




S1 S2 S3 S4 S5 S6
Crank Length 165 165 170 170 170 175
Handlebar Width 780 780 780 780 780 780
Stem Length 40 40 40 40 50 50
Saddle Width 155 155 143 143 143 143
Seatpost Length 120 150 150 180 210 210
Stack 609 617 626 635 645 654
Reach 405 425 445 470 495 525
Head-Tube Length 95 100 110 120 130 140
Head-Tube Angle 64.6 64.6 64.6 64.6 64.6 64.6
B-B Height 343 348 348 348 348 348
B-B Drop -34 -29 -29 -29 -29 -29
Trail 132 132 132 132 132 132
Fork Length, Full 560 570 570 570 570 570
Fork Rake/Offset 42 42 42 42 42 42
Front-Center 726 752 776 806 835 869
Chain-Stay Length 433 432 432 432 432 432
Wheelbase 1158 1184 1208 1238 1267 1301
Top Tube Length, Horizontal 560 582 604 631 659 691
Bike Stand-Over Height 727 763 766 767 773 778
Seat-Tube Length 385 385 405 425 445 465
Seat-Tube Angle 75.8 75.8 75.8 75.8 75.8 75.8
