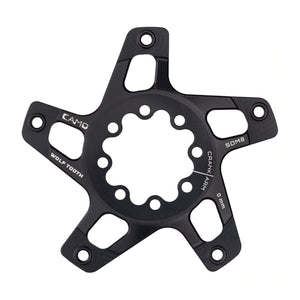

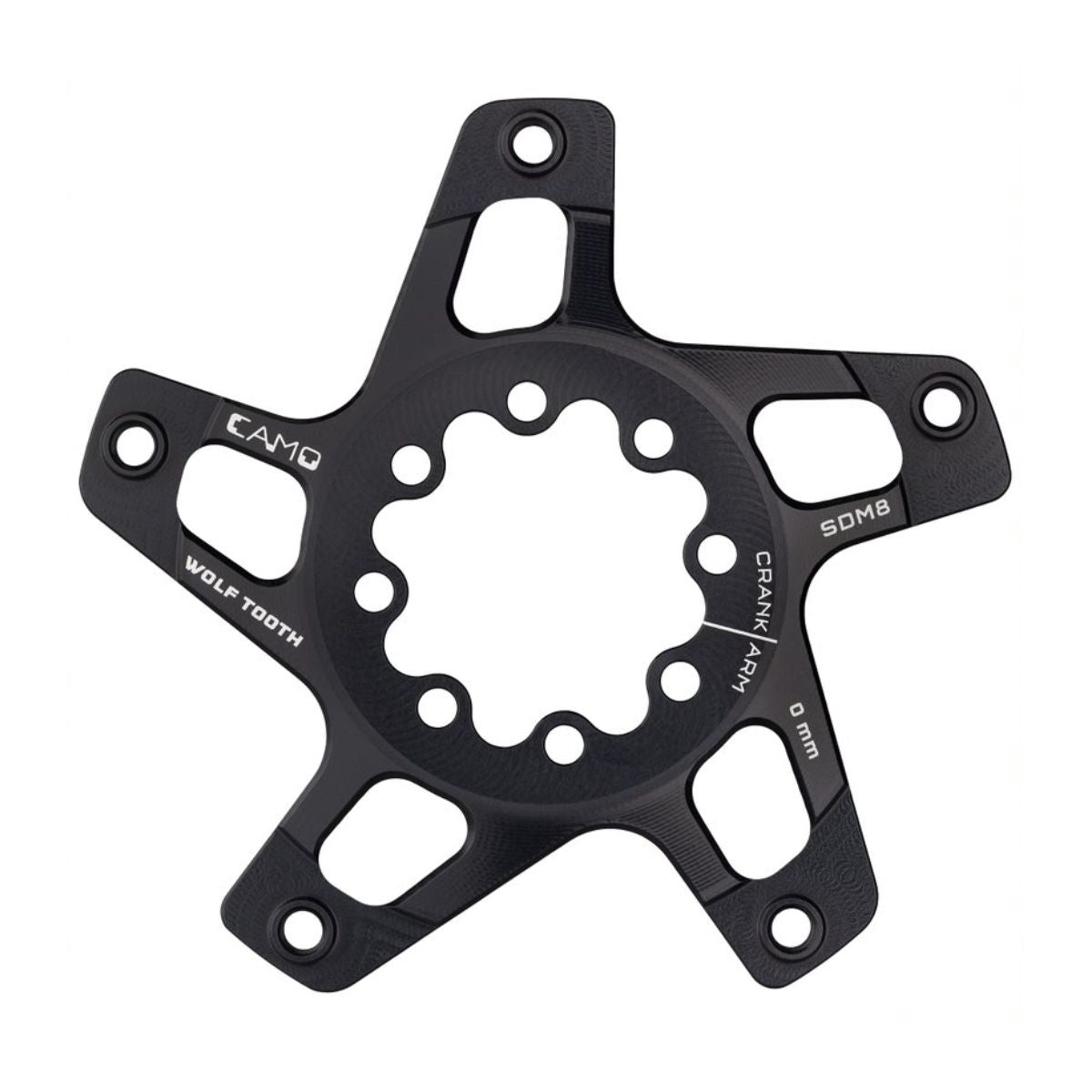

Camo Spider Sram 8 Bolt Direct Mount

We created CAMO (Chainline And Material Optimization) for direct mount style cranksets. Easily swap between chainrings on a whim and enjoy a variable selection of chainring options, all compatible with your selected CAMO spider or BashSpider. With no nuts or spacers involved, swapping chainrings takes less time than brewing a cup of your favorite beverage.

This is a spider for use with SRAM 8-Bolt cranksets that have a removable spider. Key advantages of the CAMO system include:

• Perfect chainline for wear and shifting precision
• Optimal material usage for weight, stiffness, and wear
• Spend less for chainring swapping by buying only the chainring, compared to chainrings that have an integrated spider
• Swapping chainrings is very fast with only five small bolts and no nuts
• Availability, as Wolf Tooth has many direct mount options: round or oval, stainless or aluminum, for several cranksets.
• Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
• CAMO mounting bolts are included with each spider.

COMPATIBILITY

Two different chainline options are available. The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth:

M5 (3mm offset - Boost - dished towards the frame)

• 52mm chainline for Boost bikes.
• Results in a 55mm chainline on a DUB Wide spindle crankset.
• Praxis Works mountain bike cranks use this offset for DM-A chainrings.

M2 (0mm offset)

• 55mm chainline on a DUB spindle crankset
• 49mm chainline on a BB30 short spindle crankset.
• Praxis Works mountain bike cranks use this offset for DM-B chainrings.

DROP-STOP TECHNOLOGY

Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile delivers ultimate chain retention and mud shedding ability.

RECOMMENDATIONS / INSTALLATION NOTES

• We recommend the use of a clutch style rear derailleur for the best chain security.
• If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.
• You will be able to access all bolts without removing the spider
• Line up the little dot on the ring with the dot on the spider. Don't worry, you cannot install the ring in the wrong rotational orientation.
• Be sure the bosses on the spider "plug in" to the chainring.
• Torque bolts only to 4-5 Nm and use blue Loctite threadlocker


SPECIFICATIONS

Weight (CAMO Spider): M5 • 28g | M2 • 28g
Material: 7075-T6 aluminum
Included: ED coated steel bolts included
Made in USA
