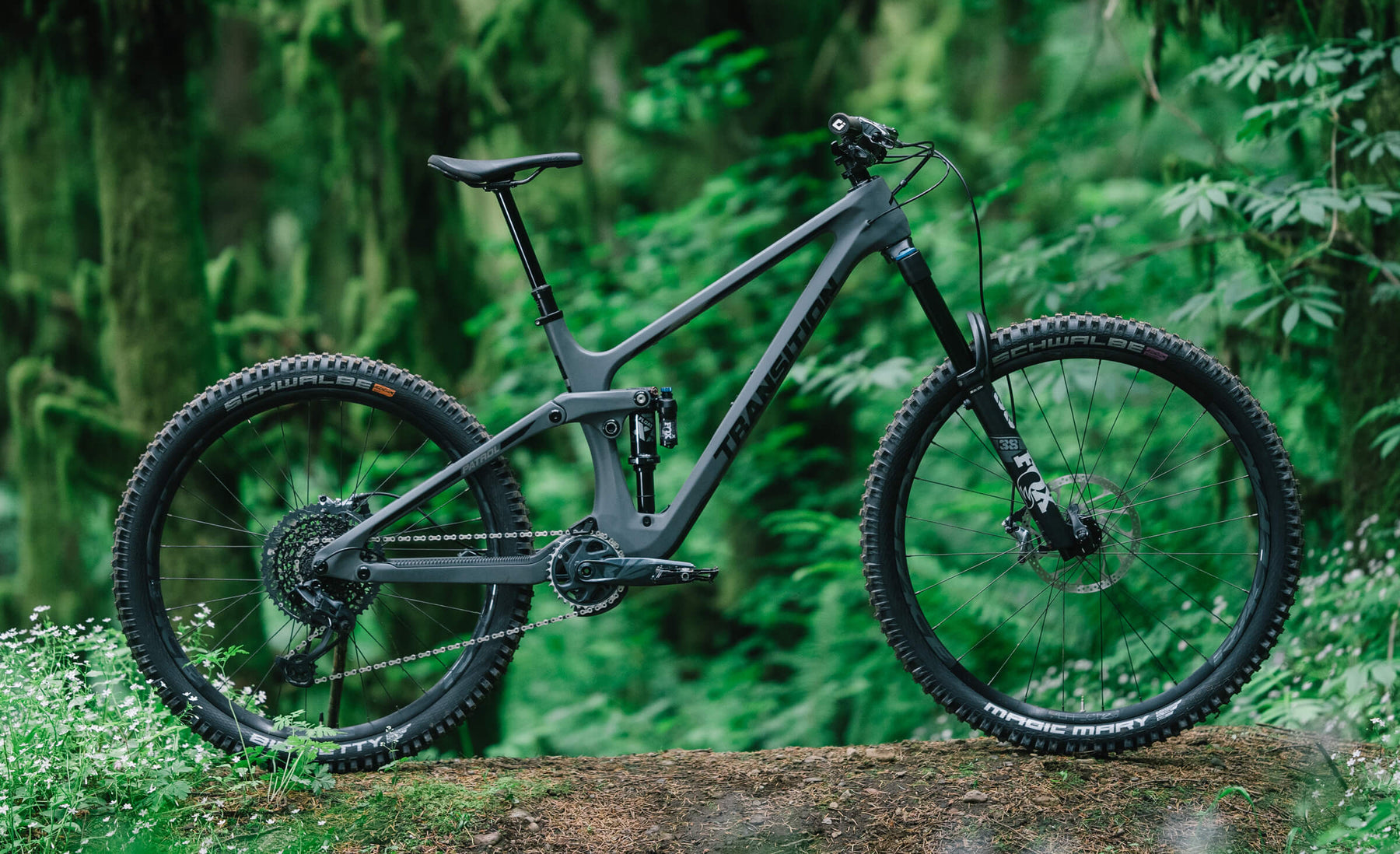

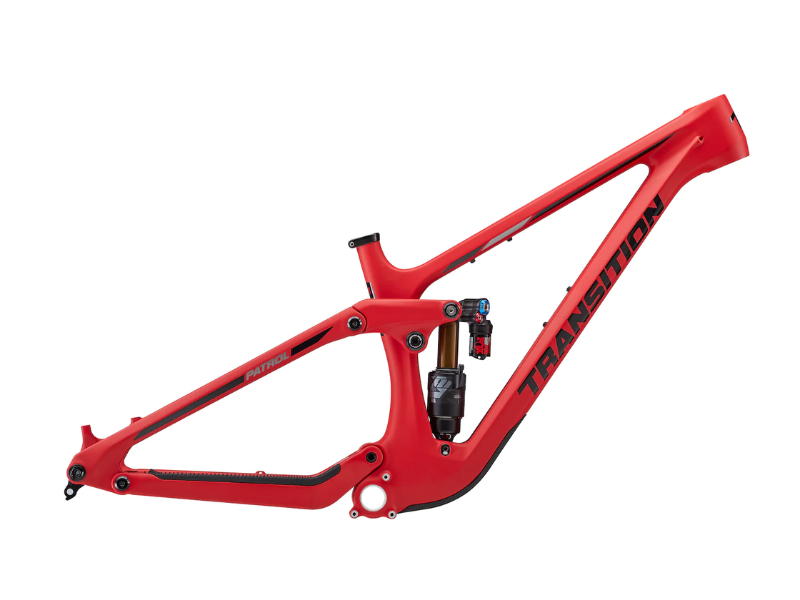

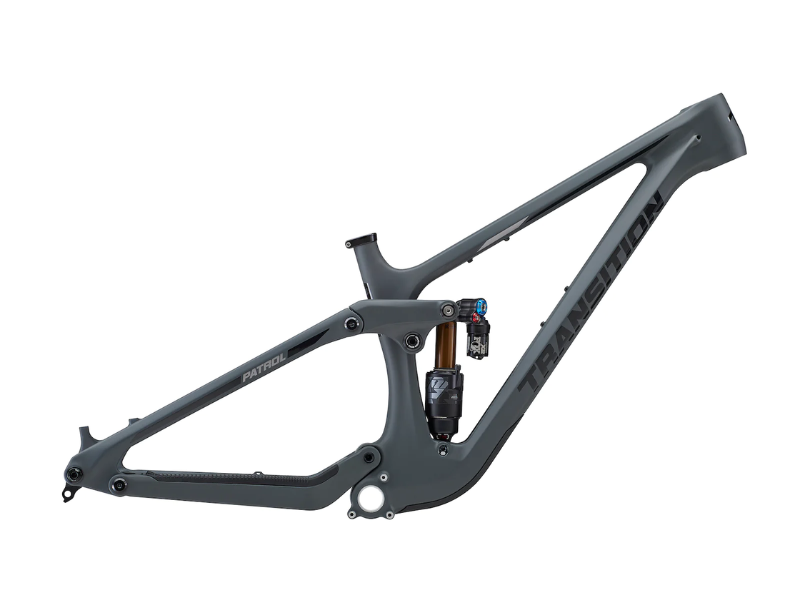

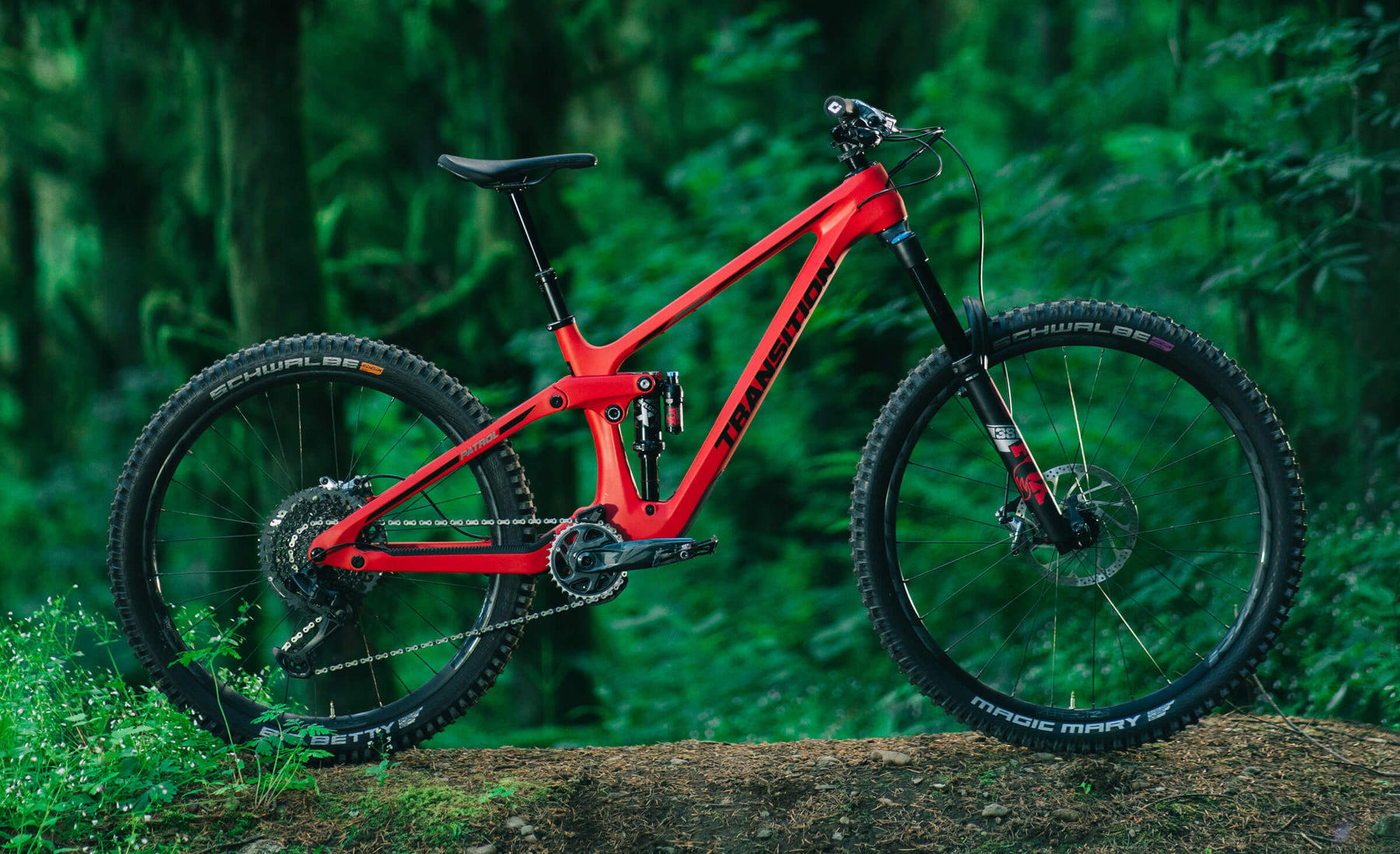

The Pure Bred Party Animal
The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail
Being one of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.
Rear Travel - 160mm (Compatible with 170mm)
Front Travel - 160mm (Compatible with 170mm single crown fork or DC)
Wheel Size - 29" Front/ 27.5" Rear
Sizes - SM, MD, LG, XL
Frame Bearings - 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900
Fork Axle To Crown - 574mm at 160mm (Compatible with 205mm x 65mm)
Shock Hardware - Trunnion Mount Top/ 30mm x 8mm Bottom
Headset (Top) - 56mm Zero Stack
Headset (Bottom) - 56mm Zero Stack
BB Shell - 73mm BSA Threaded
Chainline - 52mm
Rear Brake Mount - 180mm Post Mount, Max Rotor Size 223mm
Derailleur Hanger - Sram UDH Spec
Rear Axle - Transition Axle For UDH, 12mm x 148mm Spacing
ISCG Tabs - ISCG05
Seatpost Diameter - 31.6mm
Seat Clamp - Alloy 34.9mm / Carbon 37mm
Max Seatpost Insertion - Carbon: Small 220mm/ Medium 250mm/ Large 290MM/ XL 300mm
Max Chainring Size - 34T Standard Single Ring (Based on 52mm boost chainline)Â
Max Tire Size - 27.5 x 2.6
Rear Shock Sag - 160mm/60mm - 16-20mm (27-33%), 170mm/65mm - 18-22mm (28-34%)
