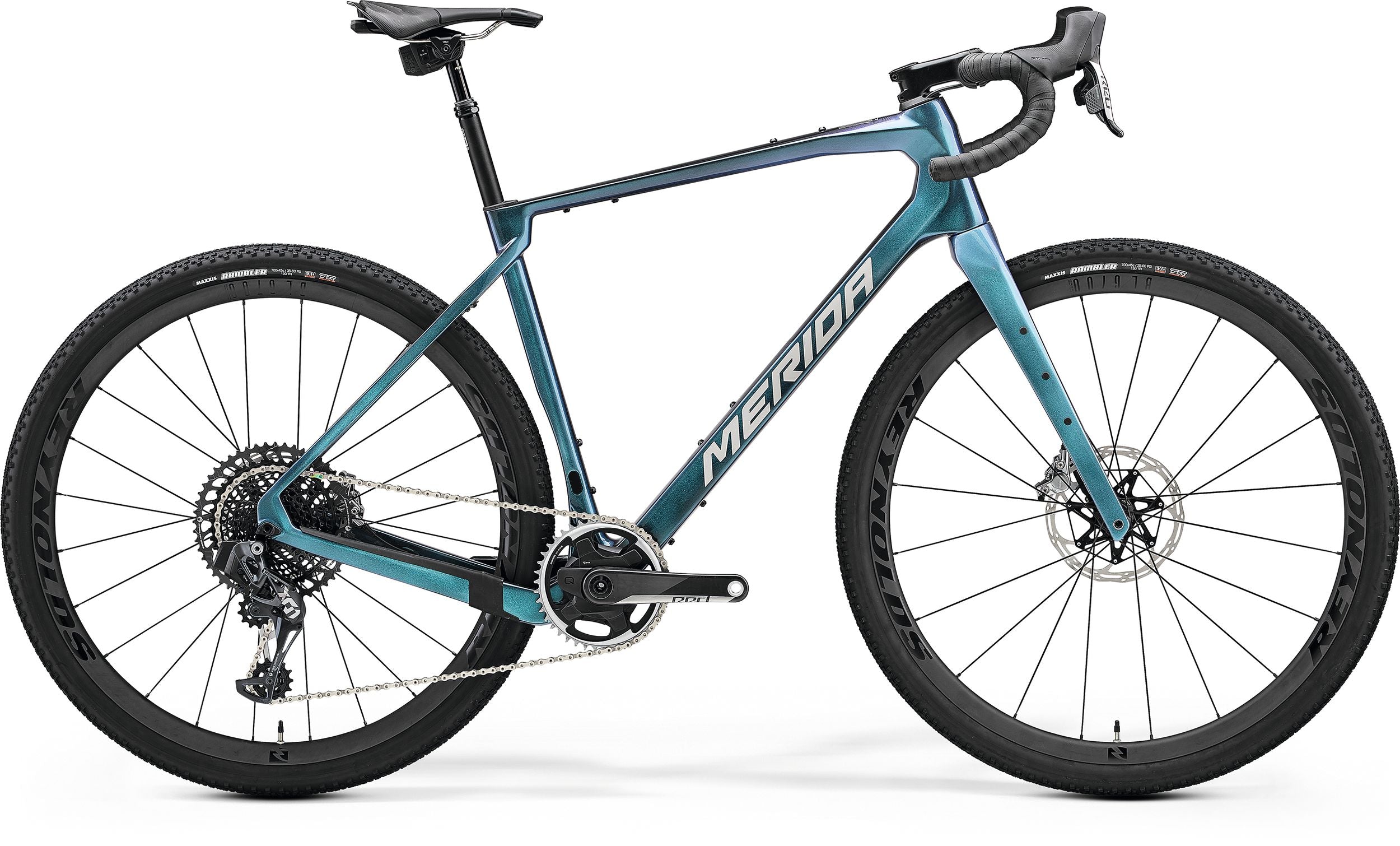

Versatility never goes out of style. The SILEX 400 is an adventure-ready gravel bike that’s equally at home doing a rough commute or winter training laps, thanks to a durable aluminium frame, lightweight carbon fork and huge tyre clearance of 700 x 45 mm – or even 42 mm tyres with fenders. Our MTB-inspired geometry gives you huge confidence off-road, the huge number of mounts mean you’ll be able to carry what you need easily, and the durable Shimano 2x10-speed GRX groupset and brakes will make short work of the ups and downs.
The SILEX turns any ride into an adventure, whether you’re on a multi-day gravel bikepacking mission or just taking the fun route to work. With multiple test wins, press accolades, industry awards and even a World Championship title under its belt, our SILEX takes the off-road capability of gravel bikes to new heights, thanks to a slacker head angle and boosted tyre clearance of up to 700x45 mm or even 42 mm with fenders. We've combined that confident mountain bike-inspired handling with all-surface versatility so that it is utterly stable when loaded up with luggage but still fast and fun when you put the hammer down. With carbon and aluminium frame options, there's a SILEX to suit every budget, but they all share the multiple mounting points for fork cages, water bottles and accessories and other features that make this drop-bar do-everything machine so versatile. We’ve added our sleek WIRE PORT cable routing for improved looks – and fewer cables to catch on with a handlebar bag – and the carbon fibre fork used on all models now has more cargo mounts plus internal routing for a dynamo hub. With the ability to use 1x or 2x drivetrains, you can pick your gearing to suit the task at hand or your own personal preference, opening up a world of opportunity for you and your SILEX.
FRAME | SILEX LITE II; MAT aluminium; 700x47C max.WHS; 100x12/142x12 AST; BSA BBR |
SHOCK | |
FORK | MERIDA SILEX CF2 II; Tapered; MAT carbon; 700x47C max. WHS |
BRAKE-F | Shimano GRX400; Hydraulic disc |
BRAKE-R | Shimano GRX400; Hydraulic disc |
ROTOR-F | Shimano RT10; 180mm |
ROTOR-R | Shimano RT10; 160mm |
CHAIN | KMC X10 |
CHAINGUARD | |
CRANKSET | Shimano GRX600; 46-30 ATC |
CRANK LENGTH | 170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL |
BOTTOM BRACKET | Attached |
DERAILLEUR-FRONT | Shimano GRX400 |
DERAILLEUR-REAR | Shimano GRX400 |
CASSETTE | Shimano CS-HG50; 11-36 ATC; 10 GER |
GRIPS | MERIDA ROAD Expert |
HANDLEBAR | MERIDA EXPERT GRII; MAT aluminium; 400mm (XS-S) , 420mm (M) , 440mm (L/XL) |
STEM | MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD |
STEM SIZE | 80 mm all sizes |
HEADSET | 320.52.631 |
HUB-F | Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock |
HUB-R | Shimano FH-TC500-HM; 12-142 WHR; 28 SPH; Centerlock |
AXLE-F | MERIDA EXPERT TR |
AXLE-R | MERIDA EXPERT TR; including removable lever; 6/4mm allen key |
RIM | MERIDA EXPERT SLII; 23 IWR; 25 HRI; MAT aluminium; Tubeless ready (tubeless |
SADDLE | MERIDA COMP SL; 25% recycled material; V-mount |
SEAT CLAMP | MERIDA EXPERT |
SEATPOST | MERIDA COMP CC; MAT aluminium; 27.2 DSP; 5 SSB |
SHIFTER-FRONT | Shimano GRX400 |
SHIFTER-REAR | Shimano GRX400 |
SPOKES | Black stainless |
TIRE-F | Maxxis Rambler; 700x45C; fold; TR; EXO |
TIRE-R | Maxxis Rambler; 700x45C; fold; TR; EXO |
XS | SM | MD | LG | XL | |
Tyre Sizes | 700 | 700 | 700 | 700 | 700 |
ST seat tube [mm] | 440 | 470 | 500 | 530 | 560 |
TT top tube [mm] | 550 | 565 | 580 | 600 | 620 |
CS chain stay length [mm] | 430 | 430 | 430 | 430 | 430 |
HTA head tube angle [°] | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
STA seat tube angle [°] | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
BD bottom bracket drop [mm] | 75 | 75 | 75 | 75 | 75 |
HT head tube [mm] | 130 | 150 | 170 | 190 | 210 |
FL fork length [mm] | 415 | 415 | 415 | 415 | 415 |
R reach [mm] | 392 | 402 | 412 | 426 | 441 |
S stack [mm] | 570 | 588 | 607 | 626 | 645 |
WB wheel base [mm] | 1048 | 1065 | 1082 | 1104 | 1126 |
SH stand over height [mm] | 744 | 771 | 798 | 825 | 852 |
