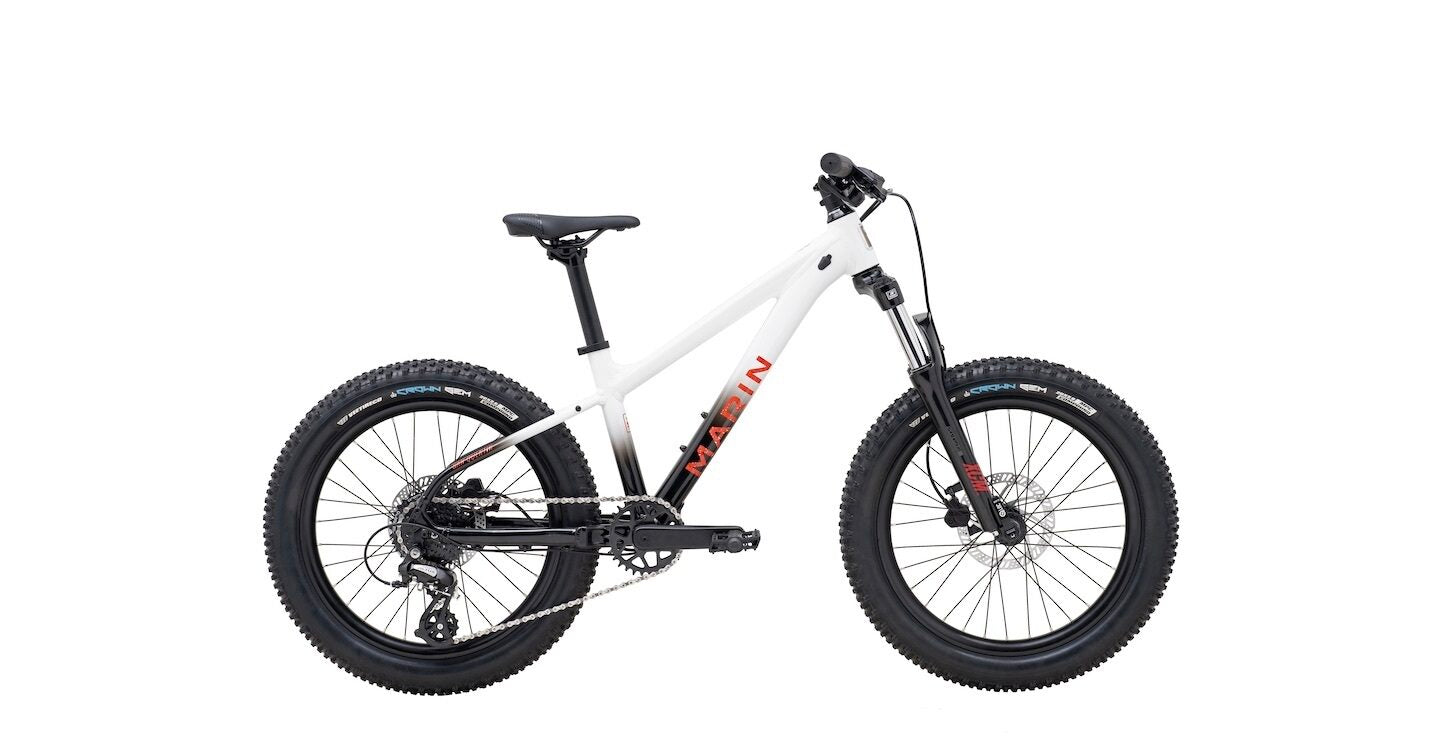

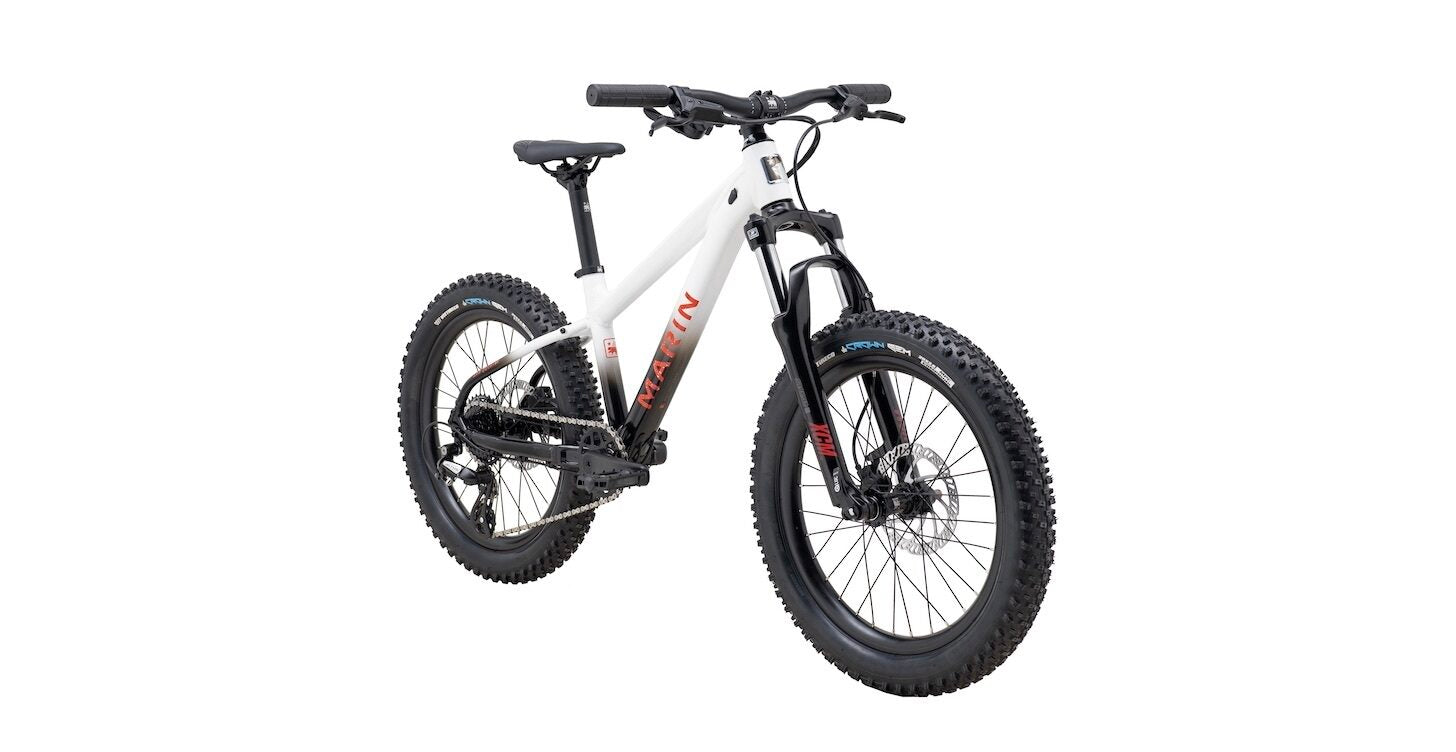

Marin took their Matt Jones-inspired Marin San Quentin and shrunk it down to fit 20” wheels. It's the perfect bike for kids who are ready for their first proper, hardcore hardtail mountain bike.
| 01. FRAME | Series 2 6061 Aluminum, 20” Wheels, Disc Specific, 135mm Dropouts |

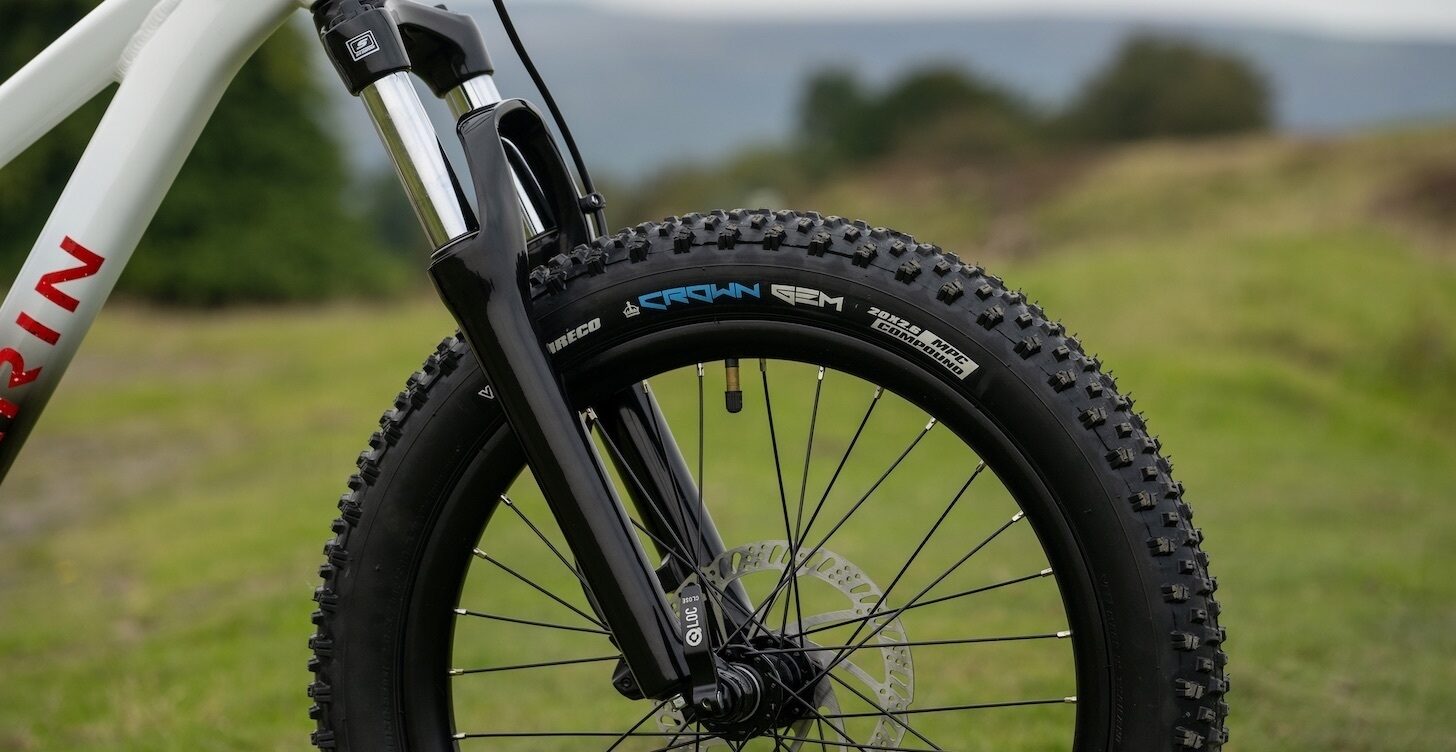

| 02. FRONT SUSPENSION | SR Suntour XCM 24 BOOST, 80mm Travel, 110mm Axle Spacing |
| 03. RIM | Marin, Double Wall Alloy, 25mm Internal |
| 04. HUB REAR | Forged Aluminum, 32H, Disc Specific |
| 05. HUB FRONT | Forged Aluminum, 32H, Disc Specific |
| 06. SPOKES | 14g Stainless Steel |
| 07. TIRES | Vee Tire Crown Gem, 20x2.6”, Wire Bead |
| 08. DERAILLEUR REAR | Shimano Altus |
| 09. DERAILLEUR FRONT | - |
| 10. SHIFT LEVER | Shimano Altus SL-M315, 8-Speed |
| 11. CRANKSET | Forged Alloy, Narrow Wide 30T, 140mm |
| 12. BOTTOM BRACKET | Sealed Cartridge Bearings, Square Taper |
| 13. CHAIN | KMC Z8 |
| 14. CASSETTE | Shimano 8-speed, 11-32T |

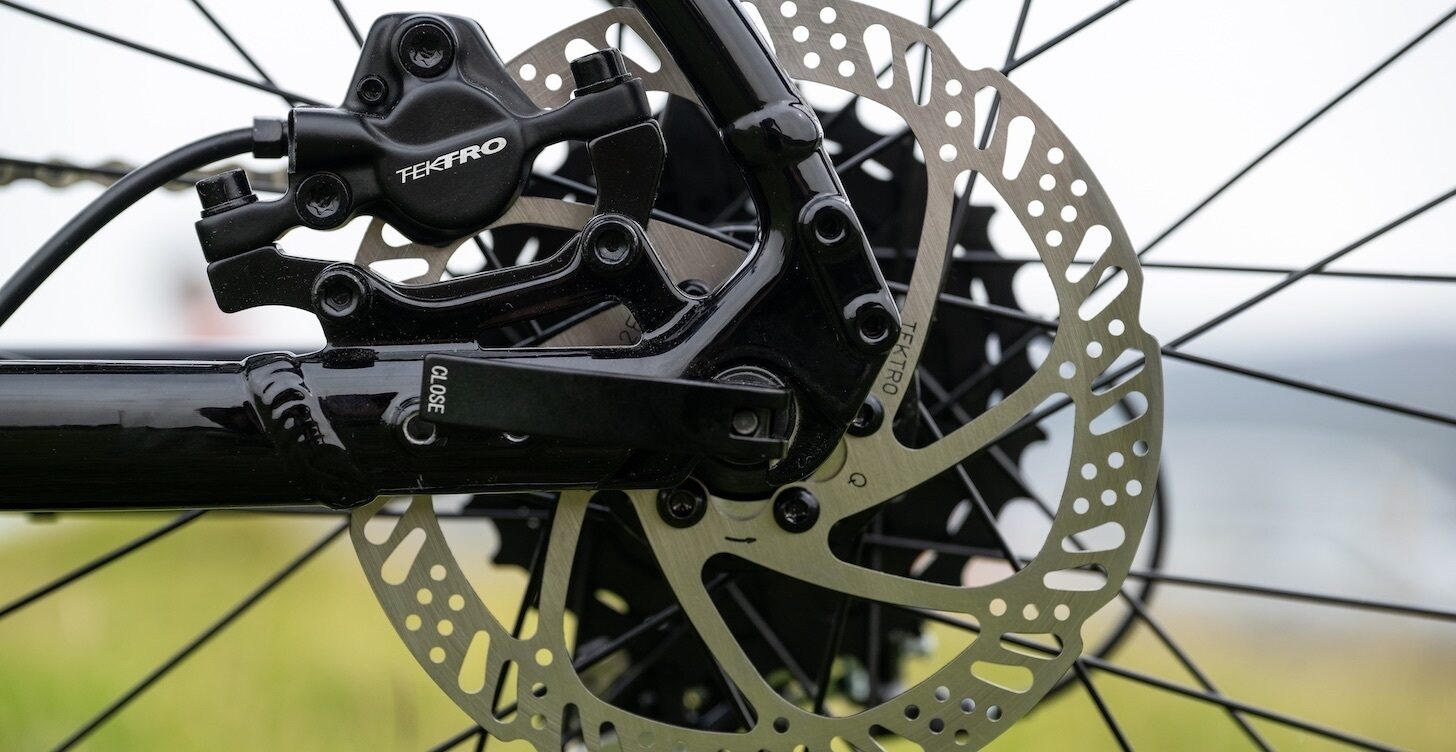

| 15. BRAKES FRONT | Tektro HD-J285 Kid's Specific Hydraulic Disc |
| 16. BRAKES REAR | Tektro HD-J285 Kid's Specific Hydraulic Disc |

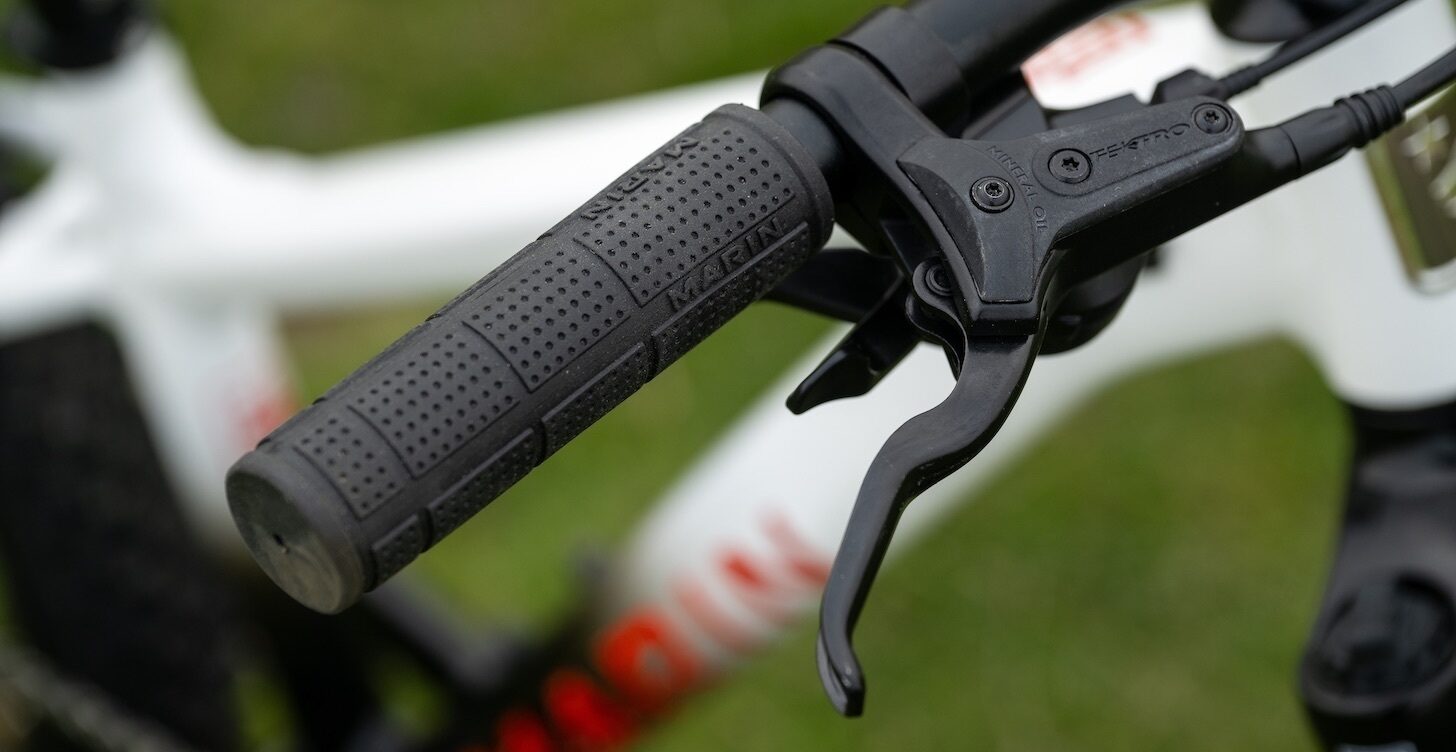

| 17. BRAKE LEVERS | Tektro Kid's Specific Short Reach Lever for Hydraulic Brake |
| 18. HANDLEBAR | Marin Riser, 31.8 clamp, 30mm Rise, 590mm Width |
| 19. STEM | Marin Alloy, 35mm |
| 20. GRIPS | Marin MTB |
| 21. HEADSET | FSA No. 10P |
| 22. SEATPOST | Marin Alloy, 30.9mm |
| 23. SADDLE | Marin Kids MTB |
| 24. PEDALS | Kids Specific Nylon Pedal |
| Stack | 499 |
| Reach | 310 |
| Head Tube Angle | 65° |
| Head Tube Length | 90 |
| Seat Tube Angle | 75° |
| Seat Tube Length | 308 |
| Top Tube Effective | 443.4 |
| BB Height | 260 |
| BB Drop | 10 |
| Chain Stay | 340 |
| Wheel Base | 922 |
| Stand Over Height | 540 |
| Fork Offset | 40 |
| SeatPost Diameter | 30.9 |
| Handlebar Width | 590 |
| Stem Length | 35 |
| Crank Length | 140 |
