Turn mountains into playgrounds
The Scout is serious about having fun

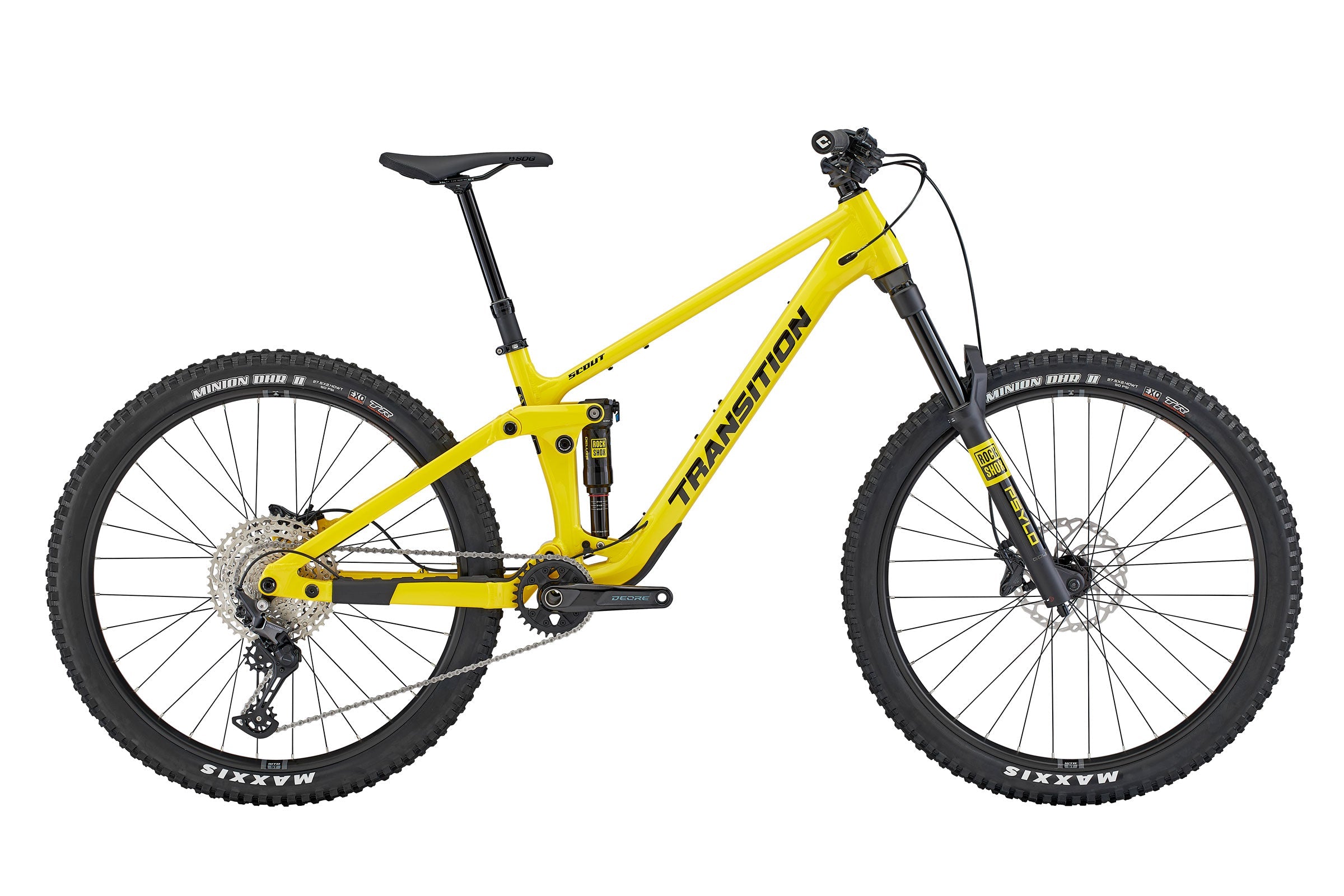

The bike that turns mountains into playgrounds, the Scout, has always been a top choice for riders looking for a compact and agile trail bike. With dual 27.5 wheels and a suspension leverage curve to match the XS-M size range, this bike is a launch pad for new riders getting into the sport, helping them progress quickly and safely. Meanwhile, seasoned riders will hop on and immediately find the most fun route down their local laps. Whether you are a young rider, or just young at heart, the Scout is the bike for those prioritizing fun over everything else.
| FRAME | Scout Alloy 150mm | ||||
| WHEEL SIZE | 27.5" | ||||
| REAR SHOCK | Marzocchi Bomber Air (205x57.5mm) |
||||
| FORK | Marzocchi Z1 (150mm) |
||||
| HEADSET | FSA No.57E | ||||
| STEM | ANVL Swage (40mm) | ||||
| HANDLEBAR | ANVL Mandrel Alloy 35 XS/SM (800x20mm) MD (800x35mm) |
||||
| GRIPS | ODI Elite Flow Lock-On | ||||
| SADDLE | SDG Bel Air 3 | ||||
| SEATPOST | OneUp Dropper Post XS (120mm) SM (150mm) MD (180mm) |
||||
| BRAKES | TRP DH-R EVO | ||||
| ROTORS | TRP R1 2.3 (180mm) | ||||
| SHIFTER | Shimano XT M8100 | ||||
| DERAILLEUR | Shimano XT M8100 SGS 12sp | ||||
| CASSETTE | Shimano XT M8100 (10-51t) | ||||
| CHAIN | Shimano XT M8100 | ||||
| CRANK | Shimano XT M8100 (30t/165mm) | ||||
| RIMS | DT Swiss M 1900 Spline 30 | ||||
| SPOKES | DT Swiss Champion | ||||
| HUBS | DT Swiss 370 Ratchet LN | ||||
| TIRE/FRONT | Maxxis Assegai 3C EXO+ (2.5) | ||||
| TIRE/REAR | Maxxis Minion DHRII 3C EXO+ (2.4) | ||||
| INCLUDED | Fidlock Twist Bike Base Tubeless Valves & Sealant |
||||
| COLOR OPTIONS |
|
||||
| WEIGHT | 34.08 lbs / 15.46 kg |
| A.REACH | 410 | 435 | 460 |
 |
|||
| B.STACK | 577 | 590 | 604 |
|
|||
| C.EFFECTIVE TOPTUBE LENGTH | 534 | 564 | 593 |
|
|||
| D.SEATTUBE LENGTH | 350 | 360 | 390 |
|
|||
| E.EFFECTIVE SEATTUBE ANGLE | 78.2° | 77.7° | 77.2° |
|
|||
| SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE | 560 | 600 | 660 |
|
|||
| ACTUAL SEATTUBE ANGLE | 72° | 72° | 72° |
|
|||
| SEATTUBE OFFSET AT BOTTOM BRACKET | 63 | 63 | 63 |
|
|||
| F.HEADTUBE LENGTH | 95 | 110 | 125 |
|
|||
| G.HEADTUBE ANGLE | 64.0° | 64.0° | 64.0° |
|
|||
| H.CHAINSTAY LENGTH | 430 | 430 | 430 |
|
|||
| I.WHEELBASE | 1153 | 1185 | 1217 |
|
|||
| J.BOTTOM BRACKET DROP | 18 | 18 | 18 |
|
|||
| K.ESTIMATED BOTTOM BRACKET HEIGHT | 337 | 337 | 337 |
|
|||
| L.STAND OVER HEIGHT | 665 | 665 | 673 |
|
|||
| M.FORK OFFSET | 37 | 37 | 37 |
