The Mountain Bikers eMTB

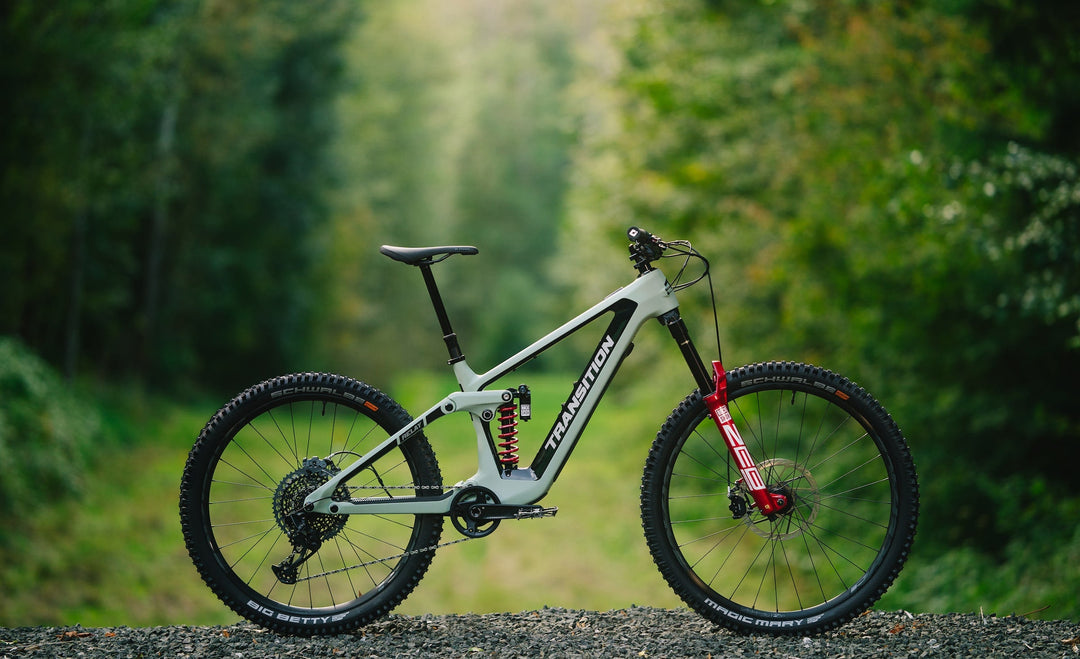

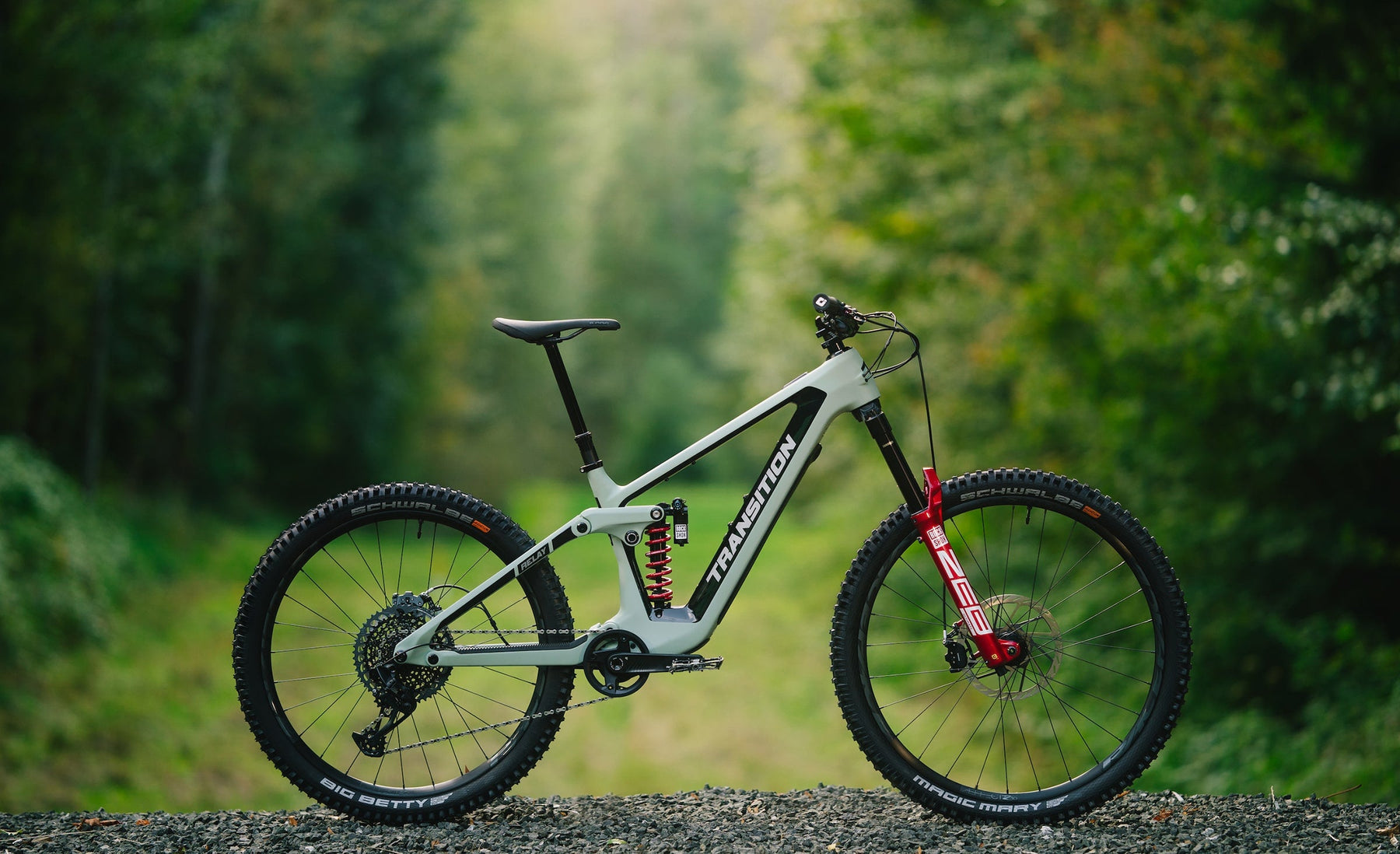

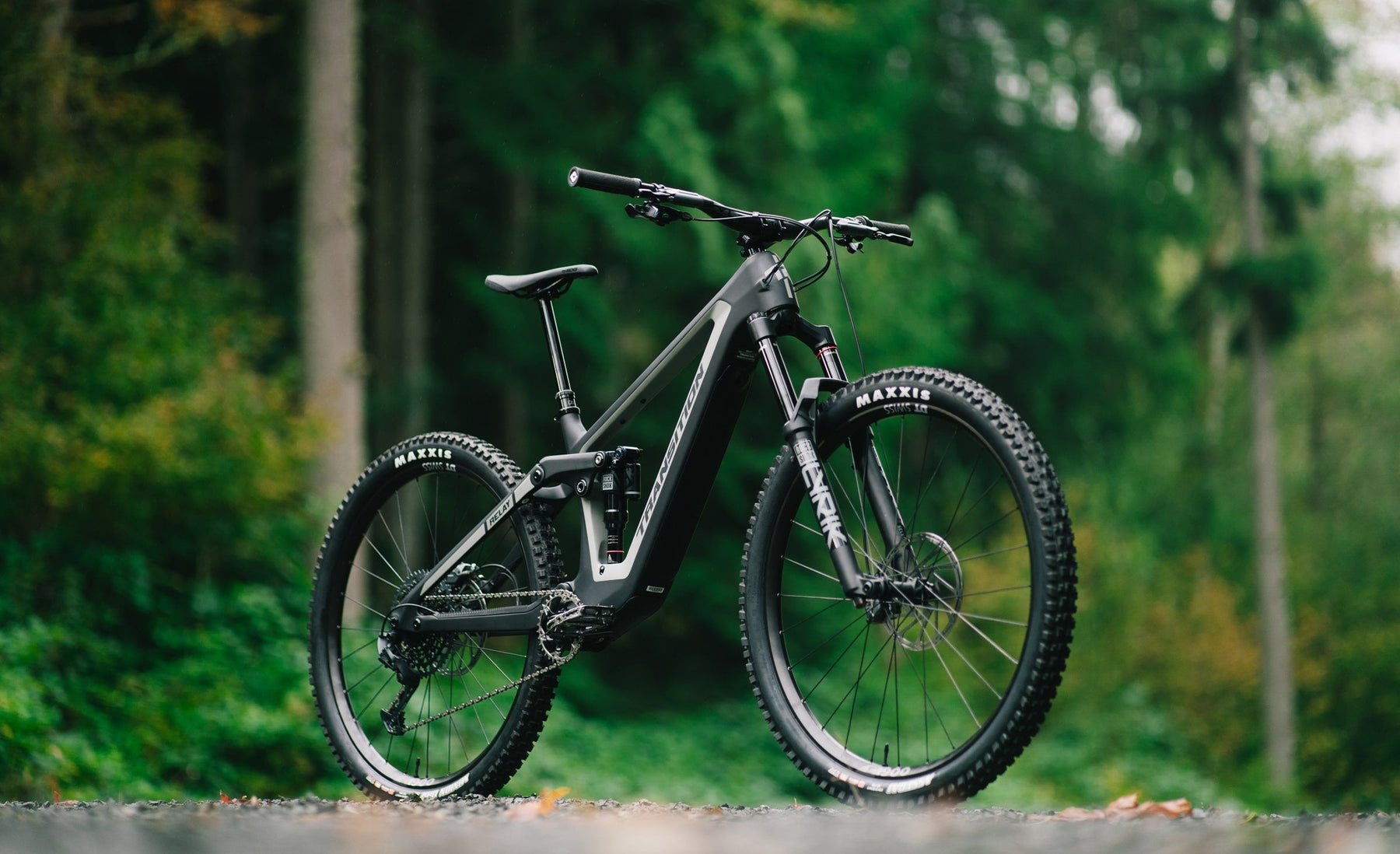

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.
We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.
| COLOR OPTIONS |
|
|
||||||||
| FRAME | Relay Alloy 170mm | Relay Carbon 160mm | ||||||||
| WHEEL SIZE | 29" (X-Small 27.5") | 29" (X-Small 27.5") | ||||||||
| DRIVE UNIT | Fazua Ride 60 | Fazua Ride 60 | ||||||||
| BATTERY | Fazua Energy 430 Take Out | Fazua Energy 430 Take Out | ||||||||
| DISPLAY | Fazua Top Tube LED Hub | Fazua Top Tube LED Hub | ||||||||
| ASSIST SWITCH | Fazua Ring Control | Fazua Ring Control | ||||||||
| REAR SHOCK | RockShox Vivid Coil Select+ (205x65mm) |
RockShox Super Deluxe Ultimate (205x60mm) |
||||||||
| FORK | RockShox ZEB Select+ (170mm) |
RockShox Lyrik Ultimate (160mm) |
||||||||
| HEADSET | FSA No.55R | FSA No.55R | ||||||||
| STEM | ANVL Swage (40mm) | ANVL Swage (40mm) | ||||||||
| HANDLEBAR | ANVL Mandrel Alloy 35 XS/SM(800x20mm) MD(800x30mm) LG/XL/XXL(800x40mm) |
OneUp Carbon XS/SM(800x20) MD/LG/XL/XXL(800x35) |
||||||||
| GRIPS | ODI Elite Flow Lock-On | ODI Elite Flow Lock-On | ||||||||
| SADDLE | SDG Bel Air 3 | SDG Bel Air 3 LUX | ||||||||
| SEATPOST | OneUp Dropper Post XS(120mm) SM(150mm) MD(190mm) LG(210mm) XL/XXL(240mm) |
OneUp Dropper Post XS(120mm) SM(150mm) MD(190mm) LG(210mm) XL/XXL(240mm) |
||||||||
| BRAKES | SRAM Maven Bronze | SRAM Maven Silver | ||||||||
| ROTORS | SRAM Centerline XS(200mm) SM-XXL(220/200mm) |
SRAM HS2 (200mm) | ||||||||
| SHIFTER | SRAM GX Eagle Single Click | SRAM POD Ultimate Bridge MMX | ||||||||
| DERAILLEUR | SRAM GX Eagle | SRAM XO AXS Eagle Transmission | ||||||||
| CASSETTE | SRAM XG 1275 (10-52t) | SRAM XS 1295 T-Type (10-52t) | ||||||||
| CHAIN | SRAM GX Eagle | SRAM XO Eagle Transmission | ||||||||
| CRANK | RaceFace Aeffect ETOR (165mm, X-Small 160mm) |
RaceFace Era Carbon ETOR (165mm, X-Small 160mm) |
||||||||
| CHAINRING | Transition Bash Spider SRAM Eagle Alloy E-Ring (32t) |
SRAM XX Direct Mount (32t) | ||||||||
| RIMS | RaceFace Aeffect R | DT Swiss XM 481 | ||||||||
| SPOKES | RaceFace 2.0/1.7/2.0 | DT Swiss Competition | ||||||||
| HUBS | RaceFace Trace 28H | DT Swiss 350 Classic DEG | ||||||||
| TIRE/FRONT | Schwalbe Magic Mary, Super Trail, Soft (2.4) | Maxxis Assegai 3C EXO+ (2.5) | ||||||||
| TIRE/REAR | Schwalbe Big Betty, Super Trail, Soft (2.4) | Maxxis Minion DHRII 3C EXO+ (2.4) | ||||||||
| INCLUDED | Fazua Charger, Tubeless Valves & Sealant | Fazua Charger, SRAM AXS Battery Charger Tubeless Valves & Sealant | ||||||||
| WEIGHT | 49.38 lbs / 22.40 kg (Size MD, Including Battery) 44.38 lbs / 20.13 kg (Size MD, Excluding Battery) |
TBD |
| XS | SM | MD | LG | XL | 2XL | ||
| A.REACH | 410/405 | 430/422 | 460/452 | 485/477 | 510/502 | 535/527 | |
 |
|||||||
| B.STACK (CARBON) | 590/588 | 615/615 | 628/634 | 637/643 | 646/652 | 655/661 | |
|
|||||||
| B.STACK (ALLOY) | 595/593 | 620/620 | 628/634 | 637/643 | 646/652 | 655/661 | |
|
|||||||
| C.EFFECTIVE TT LENGTH | 523/532 | 553/564 | 586/597 | 614/631 | 642/665 | 671/696 | |
|
|||||||
| D.SEAT TUBE LENGTH (CARBON) | 380 | 390 | 410 | 430 | 460 | 490 | |
|
|||||||
| D.SEAT TUBE LENGTH (ALLOY) | 410 | 410 | 410 | 430 | 460 | 490 | |
|
|||||||
| E.EFFECTIVE ST ANGLE | 79.7/79.3 | 79.1/78.4 | 78.4/77.7 | 77.8/77.1 | 77.3/76.6 | 77/76.3 | |
|
|||||||
| SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 560 | 600 | 660 | 720 | 780 | 820 | |
|
|||||||
| ACTUAL ST ANGLE | 71/70.6 | 71/70.3 | 71/70.3 | 71/70.3 | 71/70.3 | 71/70.4 | |
|
|||||||
| SEAT TUBE OFFSET AT BB | 90 | 90 | 90 | 90 | 90 | 90 | |
|
|||||||
| F.HEAD TUBE LENGTH (CARBON) | 100 | 100 | 115 | 125 | 135 | 145 | |
|
|||||||
| F.HEAD TUBE LENGTH (ALLOY) | 105 | 105 | 115 | 125 | 135 | 145 | |
|
|||||||
| G.HEAD TUBE ANGLE | 64/63.6 | 64/63.3 | 64/63.3 | 64/63.3 | 64/63.4 | 64/63.4 | |
|
|||||||
| H.CHAINSTAY LENGTH | 436 | 442/440 | 442/440 | 448/446 | 448/446 | 448/446 | |
|
|||||||
| I.WHEELBASE | 1167/1172 | 1208/1211 | 1244/1247 | 1280/1282 | 1309/1312 | 1338/1341 | |
|
|||||||
| J.BOTTOM BRACKET DROP | 15/11 | 25 | 25 | 25 | 25 | 25 | |
|
|||||||
| K.ESTIMATED BB HEIGHT | 340/343 | 350 | 350 | 350 | 350 | 350 | |
